cpu: atheros ar9344, mips74k 533mhz, for 2.4ghz
ar9582 for 5ghz
ethernet: ar8035 10/100/1000m phy

ieee802.11n
ieee802.11a
ieee802.11g
ieee802.11b
ieee802.310 base-t
ieee802.3u 100base-tx
ieee 802.3ab 1000base-t
ieee 802.3at

1x lan: rj45,10/100/1000m base-t interface, support 802.3at poe capacity;
auto mdi/mdi-x support, 90°
1x power dc jack
1x console by rj45
1x reset button

8mbytes spi flash

2.4ghz:
america / fcc: 2.412~2.462ghz (11 channels)
europe / etsi: 2.412~2.472ghz (13 channels)
japan / telec: 2.412~2.484ghz (14 channels)
5ghz:
5.180-5.240ghz, 5.745-5.825ghz (up to 9 channels)
the actual channels in application will vary depends on the regulation in different regions and countries.

≤ ±20 ppm

cpu: atheros ar9344, mips74k 533mhz, for 2.4ghz
ar9582 for 5ghz
ethernet: ar8035 10/100/1000m phy

>10万小时

2.4ghz:
802.11b: 26±1dbm
802.11g(54mbps): 23±1.5dbm
802.11n(mcs7): 23±1.5dbm
5ghz:
802.11a(54mbps): 17±1.5dbm
802.11n(mcs7): 16±1.5dbm

2.4ghz:
802.11b (11mbps): -90dbm
802.11g (54mbps): -75dbm
802.11n 20m (mcs7): -90dbm
802.11n 40m (mcs7): -72dbm
5ghz:
802.11a (54mbps): -72dbm
802.11n 20m (mcs7): -70dbm
802.11n 40m (mcs7): -67dbm

2.4g: 3dbi内置天线2根
5g: 3dbi内置天线2根

系统灯, 网口灯

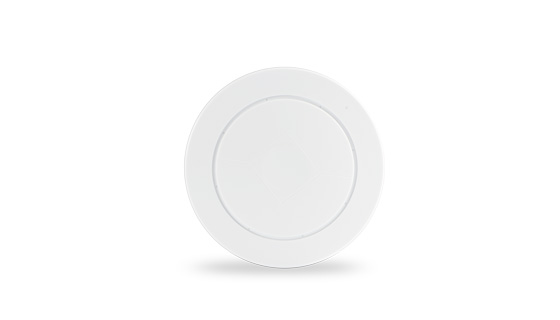

塑料吸顶
