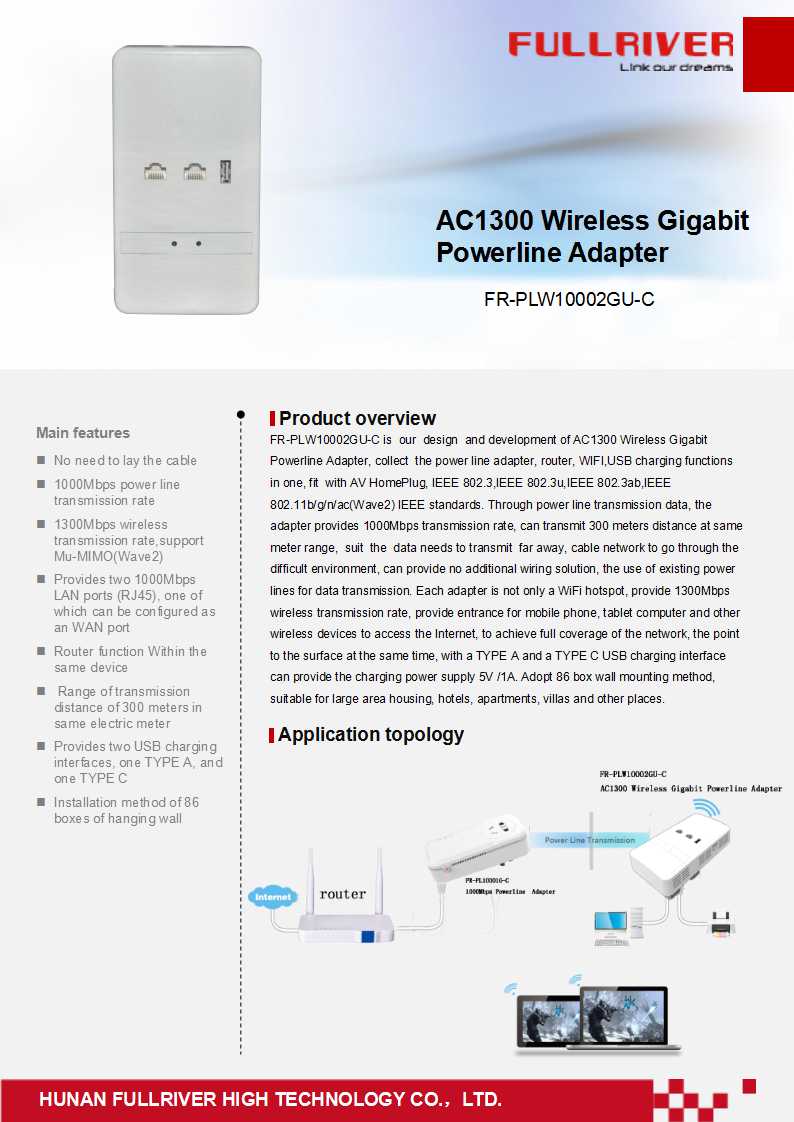

ac1300 wireless gigabit powerline adapter
model：

comply with av homeplug , ieee 802.3, ieee 802.3u ,ieee 802.3ab,ieee 802.11b/g/n/ac standards;
supply wire and wireless network, without the need to set up the cable, and provide wifi 2.4ghz&5ghz hot spots;
1000mbps power line transmission rate, 1300mbps wireless transmission rate, support mu-mimo(wave2),signal stability is not dropped, to achieve full coverage of the network;
provides two 1000mbps lan ports (rj45), one of which can be configured as an wan port;
for ap, wds mode, can easily achieve the wireless ap and wireless repeater, wireless point to point bridge, wireless point to multipoint bridging function;
supports powerline 128-aes，wireless 64/128 wep encryption, wpa-psk/wpa2-psk, wpa/wpa2 and other encryption and security mechanism;
within the same meter range of transmission distance of 300 meters or more;
provides two usb charging interfaces, one type a(5v/1a), and one type c(5v/1a);
installation method of 86 boxes of hanging wall.

specifications

model name		fr-plw10002gu-c
chipset		mt7621a+mt7615d+qca7550+ar8035
cpu frequency		880mhz
ram capacity		128mbyte(ddr3)
rom capacity		8mbyte(spi flash)
standards and protocols	wireless	5ghz: ieee 802.11ac,ieee 802.11n,ieee 802.11a 2.4ghz: ieee 802.11n,ieee 802.11g,ieee 802.11b
	wired	ieee802.3i,ieee802.3u,ieee802.3ab,homeplug av2
operating frequency		2.4ghz & 5ghz
signal rate		2.4ghz: up to 400mbps 5ghz: up to 867mbps
modulation		ieee 802.11b:cck，qpsk，bpsk ieee 802.11g/a:ofdm ieee 802.11n:qpsk，bpsk，16-qam，64-qam ieee 802.11ac:bpsk，qpsk，16qam，64qam，256qam homeplug av2:ofdm
transmit power		2.4ghz:≦19dbm 5ghz:≦20dbm
indicators		power,2.4gwlan,5gwlan,plc_led(bi- colour),lan1,lan2
interfaces		2* 10/100/1000mbps lan ports(rj45) 1* usb type a charging port(5v/1a) 1* usb type-c charging port(5v/1a)
button		reset(multiplex plc pairing)
antenna		1* dual band 3dbi built-in pcb antennas,1* 2.4ghz 3dbi built-in pcb antennas,1* 5ghz 3dbi built-in pcb antennas,
power supply		ac 100v~240v 50/60hz
dimensions ( w x d x h )		170 x 86 x 38mm
environment		operating temperature: 0℃~40℃ storagetemperature: -40℃~70℃ operating humidity:10%~90% non-condensing storagehumidity:5%~90% non-condensing
