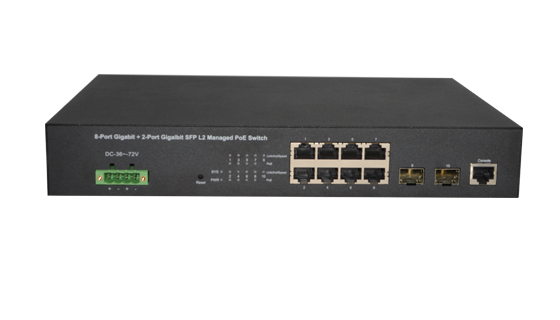

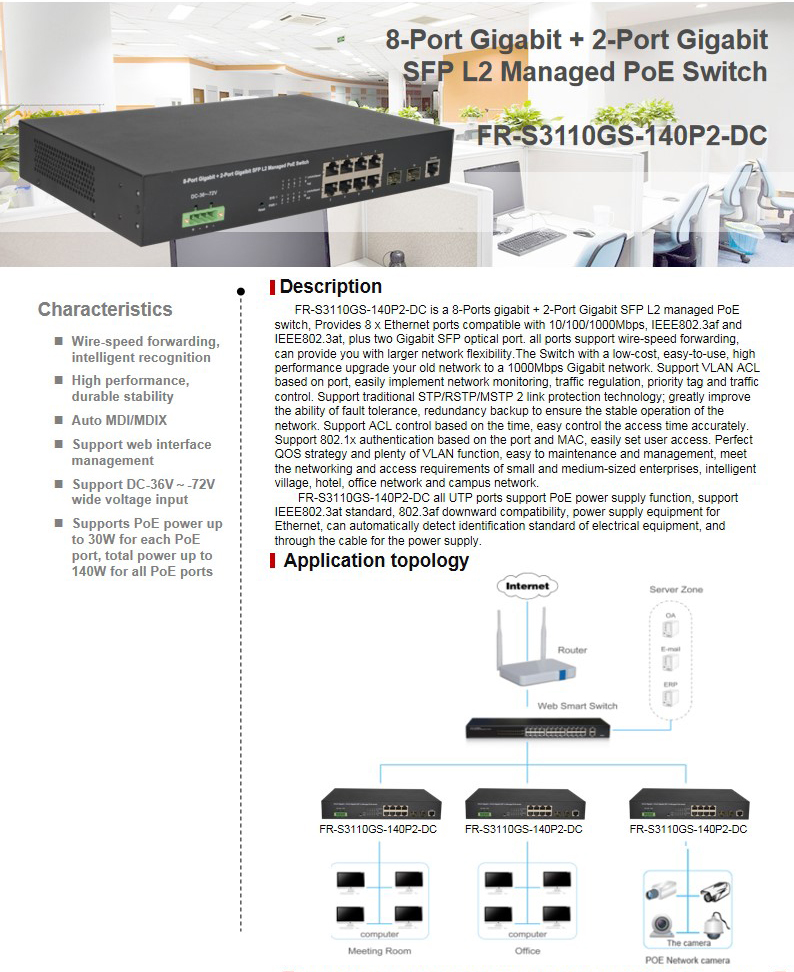

8-port gigabit + 2-port gigabit sfp l2 managed poe switch
model：

comply with 802.3i、ieee 802.3u、ieee 802.3ab、ieee 802.3x、ieee 802.3z、 ieee802.3af、ieee802.3at
supports poe power up to 30w for each poe port, total power up to 140w for all poe ports
8 x 10/100/1000mbps rj45 port, support poe power supply, compatible with ieee 802.3af/at standards, 2 x 1000mbps sfp optical port
supports ieee802.3x flow control for full-duplex and backpressure for half-duplex
support web interface management
supports qos (quality of service), port mirror, link aggregation protocol
support 8k mac address table & mac address learning
support dc-36v～-72v wide voltage input
led indicators for monitoring power,system,link/activity,poe

specifications

model name		fr-s3110gs-140p2-dc
chipset		rtl8380m+rtl8231+ip808
standards and protocols		ieee 802.3i、ieee 802.3u、ieee 802.3ab、ieee 802.3x、ieee 802.3z、ieee802.1q 、ieee802.1p、ieee802.3af、ieee802.3at
interface		8 x 10/100/1000mbps auto-negotiation ports 2 x 100/1000mbps sfp port 1 x console port 1 x dc input terminal
network media		10base-t: utp category 3,4,5 cable (maximum 100m) 100base-tx: utp category 5,5e cable (maximum 100m) 1000base-t: utp category 5e,6 cable (maximum 100m) 1000base-sx:62.5μm/50μm mmf(2m~550m) 1000base-lx:62.5μm/50μm mmf(2m~550m) or 10μm smf（2m~5000m）
transfer method		store-and-forward
mac address table		8k
switching capacity		20gbps
packet forwarding rate		14.88mbps
packet buffer		4.1mbit
jumbo frame		10kbyte
poe ports(rj45)		8* poe ports compliant with 802.3at/af
power pin assignment		1/2(+), 3/6(-)
poe budget		140w
indicators	per device	power：green. system：green
	per port	link/act/speed：green(1000mbps)/orange(100/10mbps) . poe：orange
power supply		dc -36v～-72v, 150w internal power
power consumption		maximum: 156.5w(-48v)
dimensions（l×w×h）		28018044mm
environment		operating temperature: 0℃~45℃ storage temperature: -40℃~70℃ operating humidity: 5%~95% non-condensing storage humidity: 5%~95% non-condensing
