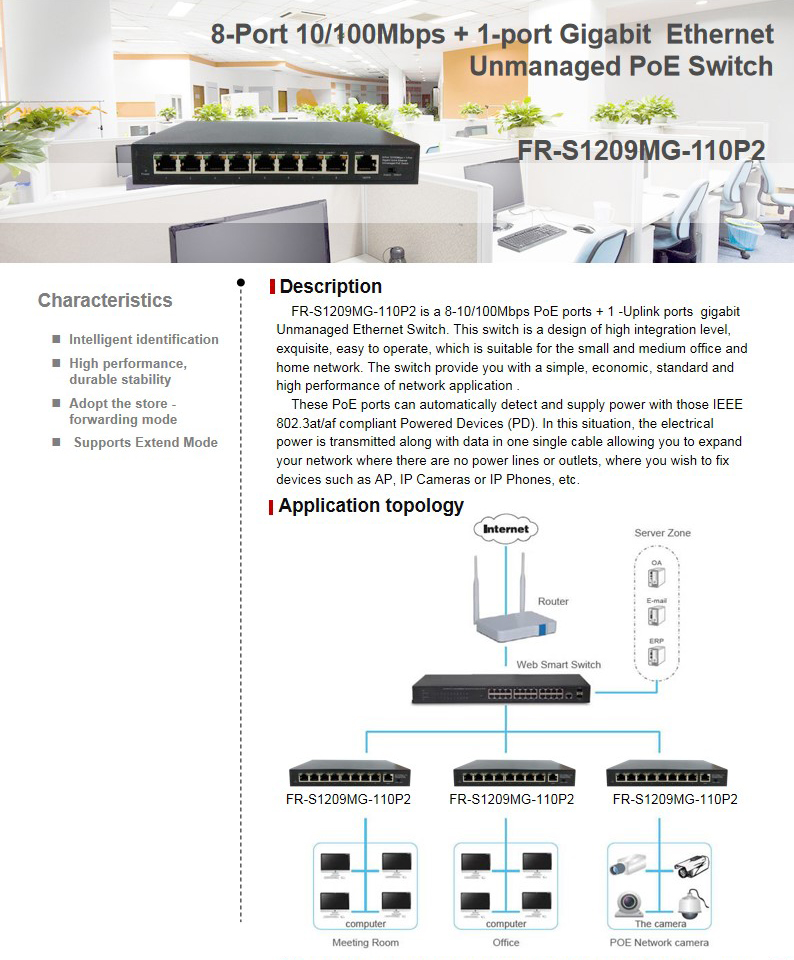

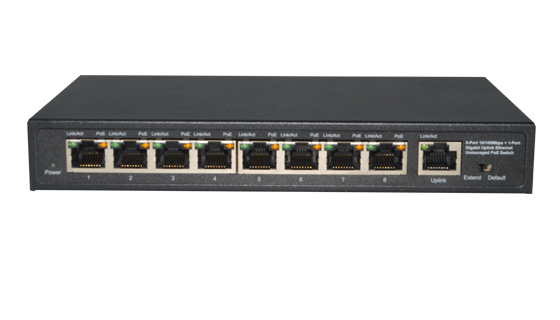

8-port 10/100mbps + 1-port gigabit ethernet unmanaged poe s
model：

comply with ieee 802.3i, ieee 802.3u, ieee802.3x, ieee802.3ab ethernet standards
supports ieee802.3at/af poe standards
supports poe power up to 30w for each poe port, total power up to 110w for all poe ports
2k mac address table of the switch with auto-learning and auto-aging
supports ieee802.3x flow control for full-duplex mode and backpressure for half-duplex mode
all ports support auto mdi/mdi-x ethernet
led indicators for monitoring pse, link / activity
supports extend mode.

specifications

model name		fr-s1209mg-110p2
chipset		ip179h+ip1001m+2*ip808ar
standards and protocols		ieee 802.3i, ieee 802.3u, ieee 802.3ab, ieee802.3at,ieee802.3af,ieee 802.3x
interface		810/100mbps rj45 ports (auto negotiation/auto mdi/mdix) 110/100/1000mbps uplink port(auto negotiation/auto mdi/mdix)
network media		10base-t: utp category 3, 4, 5 cable (maximum 100m) 100base-tx/1000base-t: utp category 5, 5e or above cable (maximum 100m)
transfer method		store-and-forward
mac address table		2k
switching capacity		3.6gbps
packet forwarding rate		2.68mpps
packet buffer		1mbits
jumbo frame		1536bytes
poe ports(rj45)		8* poe ports compliant with 802.3at/af
power pin assignment		1/2(+),3/6(-)
poe budget		110w
indicators	per device	power：green
	per port	link / act : green , poe : orange
working modes	normal	all ports can communicate with each other
	extend	speed of 1~8 ports is reduced to 10 mbps, transmission distance can reach 250m
power supply		53.5vdc, 2.24a external power
power consumption		maximum(poe on): 112.3w (dc 53.5v)

dimensions（l×w×h）

190*100*28mm

environment

operating temperature: 0℃~45℃

storage temperature: -40℃~70℃

operating humidity: 10%~90% non-condensing

storage humidity: 5%~90% non-condensing
