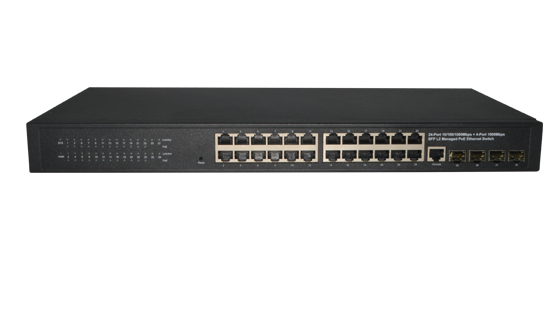

24-port gigabit + 4-port gigabit sfp l2 managed poe switch
model：

supports ieee 802.3i，ieee 802.3u，ieee802.3ab，ieee802.3z，ieee802.3x，ieee802.3at，ieee802.3af，ieee802.3az.
supports poe power up to 30w for each poe port, all power up to 370w.
integrated high-performance cortex-a9 processor.
supports mac address auto-learning and auto-aging.
twenty-four 10/100/1000mbps self-adaption rj45 port, plus four 1 gigabit port 1000mbps sfp port, it can be used to link bandwidth higher upstream equipment.
store and forward mode operates.
led indicators for monitoring power, link/activity,poe.
support qos, port mirroring, link aggregation protocol.
19 inches full metal iron shell and internal power adapter design, suitable for rack installation.

specifications

model	fr-s3028pegmf-g
chipset	bcm53547+3*ip808
standards	ieee 802.3i，ieee 802.3u，ieee802.3ab，ieee802.3x， ieee802.3az, ieee802.3ad，ieee802.1p，ieee802.1q ieee802.3af、ieee802.3at
number of ports	24 x 10/100/1000mbps ports 4 x 1000mbps sfp ports 1x console port
network media (cable)	10base-t: utp category 3, 4, 5 cable (maximum 100m)100base-tx: utp category 5, 5e cable (maximum 100m) 1000base-t: utp category 5e, 6 cable (maximum 100m) 1000base-x:mmf,smf
transfer method	store-and-forward
mac address table	16k
switching capacity	56gbps
packet forwarding rate	41.67mpps
packet buffer	512kbytes
jumbo frame	9kbytes
poe ports(rj45)	24x poe ports compliant with 802.3at/af
power pin assignment	1/2(+),3/6(-)

poe budget		370w
indicators	per device	power&sys : green
	per port	link/activity : 1000mbps green;10/100mbps orange
		poe: yellow
power supply		100~240vac,50/60hz,400w
power consumption		maximum(poe on): 417.2w(220v/50hz)
dimensions (w×d×h)		44020844mm (19” metal case)
environment		operating temperature: 0℃~45℃ storage temperature: -40℃~70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing
