supports ieee 802.3i，ieee 802.3u，ieee802.3ab，ieee802.3z，ieee802.3x，ieee802.3at，ieee802.3af，ieee802.3az.
supports poe power up to 30w for each poe port, all power up to 370w.
integrated high-performance cortex-a9 processor.
supports mac address auto-learning and auto-aging.
twenty-four 10/100/1000mbps self-adaption rj45 port, plus four 1 gigabit port 1000mbps sfp port, it can be used to link bandwidth higher upstream equipment.
store and forward mode operates.
led indicators for monitoring power, link/activity,poe.
support qos, port mirroring, link aggregation protocol.

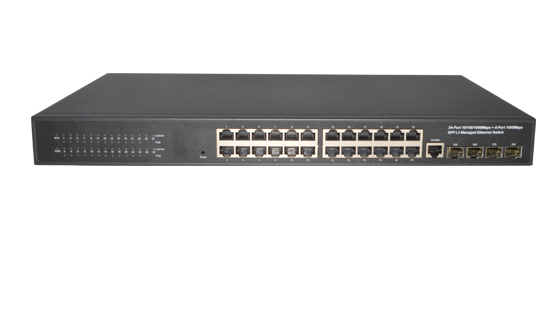

19 inches full metal iron shell and internal power adapter design, suitable for rack installation.
|
model |
fr-s3328gs-370p2 |
|
chipset |
bcm53547+3*ip808 |
|
standards |
ieee 802.3i，ieee 802.3u，ieee802.3ab，ieee802.3x， ieee802.3az, ieee802.3ad，ieee802.1p，ieee802.1q ieee802.3af、ieee802.3at |
|
number of ports |
24 x 10/100/1000mbps ports 4 x 1000mbps sfp ports 1x console port |
|
network media (cable) |
10base-t: utp category 3, 4, 5 cable (maximum 100m) 100base-tx: utp category 5, 5e cable (maximum 100m) 1000base-t: utp category 5e, 6 cable (maximum 100m) 1000base-x:mmf,smf |
|
transfer method |
store-and-forward |
|
mac address table |
16k |
|
switching capacity |
56gbps |
|
packet forwarding rate |
41.67mpps |
|
packet buffer |
512kbytes |
|
jumbo frame |
9kbytes |
|
poe ports(rj45) |
24x poe ports compliant with 802.3at/af |
|
power pin assignment |
1/2(+),3/6(-) |
|
poe budget |
370w |
|
|
indicators |
per device |
power&sys : green |
|
per port |
link/activity : 1000mbps green;10/100mbps orange |
|
|
poe: yellow |
||
|
power supply |
100~240vac,50/60hz,400w |
|
|
power consumption |
maximum(poe on): 417.2w(220v/50hz) |
|
|
dimensions (w×d×h) |
440*240*44mm (19” metal case) |
|
|
environment |
operating temperature: 0℃~45℃ storage temperature: -40℃~70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing |
|
