16*10base-t / 100base-t ethernet ports, all ports can supply power
comply with ieee802.3i、ieee802.3u、ieee802.3az、ieee 802.3x、ieee802.3af、ieee802.3at standards
supports poe power up to 30w for each poe port, all power up to 240w
support storage and forwarding exchange;
supports ieee802.3x flow control for full-duplex mode and backpressure for half-duplex mode
supports mac address auto-learning
led indicators for monitoring poe, link / activity
|

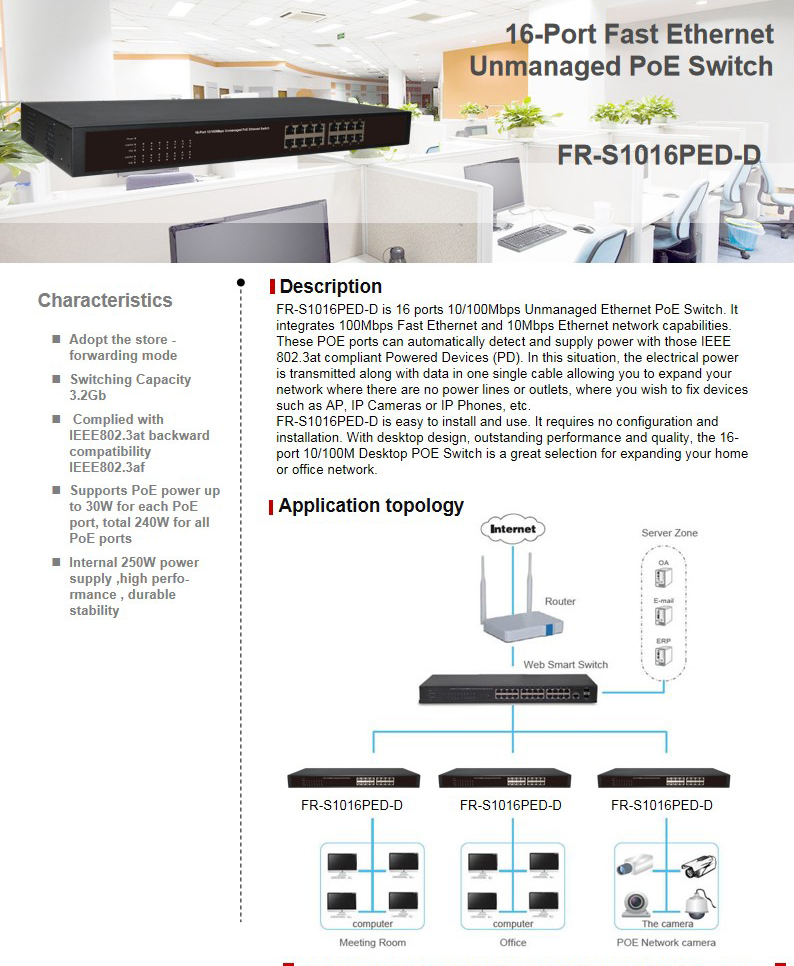

model name |
fr-s1016ped-d |
|
|
chipset |
rtl8316e+rtl8231+2*ip808 |
|
|
standards and protocols |
ieee 802.3i，ieee 802.3u，ieee802.3x，ieee802.3az , ieee802.3at，ieee802.3af |
|
|
interface |
16*10 / 100mbps adaptive rj45 ports (auto mdi / mdix) |
|
|
network media |
10base-t: utp category 3,4 cable (maximum 100m) 100base-tx: utp category 5,5e cable (maximum 100m) |
|
|
transfer method |
store-and-forward |
|
|
mac address table |
8k |
|
|
switching capacity |
3.2gbps |
|
|
packet forwarding rate |
2.38gpps |
|
|
packet buffer |
2mbits |
|
|
jumbo frame |
2kbytes |
|
|
poe ports (rj45) |
16*poe ports compliant with 802.3at/af |
|
|
power pin assignment |
1/2(+) , 3/6(-) |
|
|
poe budget |
240w |
|
|
indicators |
per device |
power : green |
|
per port |
link / act : green poe : orange |
|
|
power supply |
100~240 v ac , 50/60 hz , 250w internal power |
|
|
power consumption |
264.7w(220v/50hz) |
|
|
dimensions（l×w×h） |
442*208*44mm |
|
environment |
operating temperature: 0℃~45℃ storage temperature: -40℃~70℃ operating humidity: 10%~90% rh non-condensing storage humidity: 5%~90% rh non-condensing |
