comply with 802.3i、ieee 802.3u、ieee 802.3ab、ieee 802.3x、ieee 802.3z、ieee802.1q 、ieee802.1p、 ieee802.3af、ieee802.3at
supports poe power up to 30w for each poe port, total power up to 140w for all poe ports
8 x 10/100/1000mbps auto mdi/mdi-x ethernet port
2 x 100/1000mbps sfp port
8k entry mac address table of the switch with auto-learning and auto-aging
supports ieee802.3x flow control for full-duplex mode and backpressure for half-duplex mode
support web interface management
supports qos (quality of service), port mirror, link aggregation protocol
led indicators for monitoring power,system,link/activity,poe
|

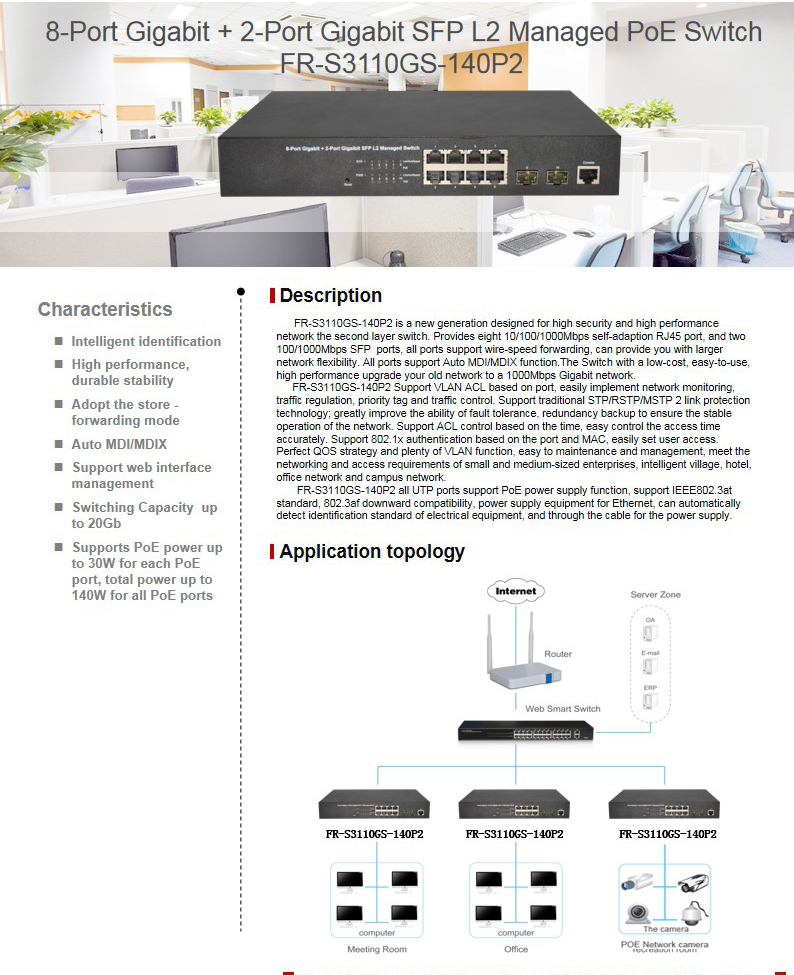

model name |
fr-s3110gs-140p2 |
|
|
chipset |
rtl8380m+rtl8231+ip808 |
|
|
standards and protocols |
ieee 802.3i、ieee 802.3u、ieee 802.3ab、ieee 802.3x、ieee 802.3z、ieee802.1q 、ieee802.1p、ieee802.3af、ieee802.3at |
|
|
interface |
8 x 10/100/1000mbps auto-negotiation ports 2 x100/1000mbps sfp port 1 xconsole port |
|
|
network media |
10base-t: utp category 3,4,5 cable (maximum 100m) 100base-tx: utp category 5,5e cable (maximum 100m) 1000base-t: utp category 5e,6 cable (maximum 100m) 1000base-sx:62.5μm/50μm mmf(2m~550m) 1000base-lx:62.5μm/50μm mmf(2m~550m) or 10μm smf（2m~5000m） |
|
|
transfer method |
store-and-forward |
|
|
mac address table |
8k |
|
|
switching capacity |
20gbps |
|
|
packet forwarding rate |
14.88mbps |
|
|
packet buffer |
4.1mbit |
|
|
jumbo frame |
10kbyte |
|
|
poe ports(rj45) |
8* poe ports compliant with 802.3at/af |
|
|
power pin assignment |
1/2(+),3/6(-) |
|
|
poe budget |
140w |
|
|
indicators |
per device |
power：green. system：green |
|
per port |
link/act/speed：green(1000mbps)/orange(100/10mbps) . poe：orange |
|
|
power consumption |
maximum: 163.2w (220v/50hz) |
|
|
dimensions（l×w×h） |
280*180*44mm |
|
|
environment |
operating temperature: 0℃~45℃ storage temperature: -40℃~70℃ operating humidity: 5%~95% non-condensing storage humidity: 5%~95% non-condensing |
|
