| model |

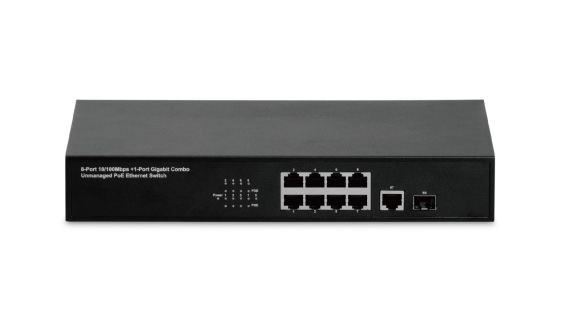

fr-s1010ped-c |
|
| chipset |
ip1818+ip108a+ip1001+pd69008 |
|
|
standards |
ieee802.3、ieee802.3u、ieee802.3ab、ieee802.3x、ieee802.3af、 ieee802.3at |
|
|
number of ports |

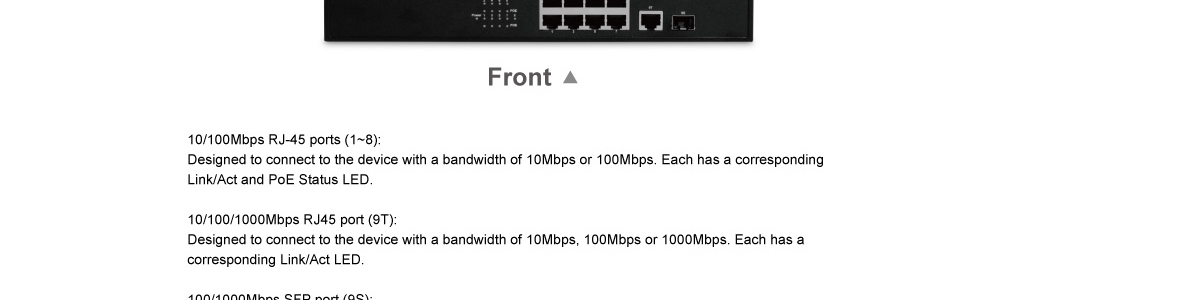

8x10/100mbps auto mdi/mdix ,auto negotiation ports |
|
|
network media (cable) |
10base-t: utp category 3,4,5 cable (maximum 100m) |
|
|
capability |
store-and-forward |
supports |
| switching capacity | 3.6gbps | |
| mac address learning | 4k | |
|

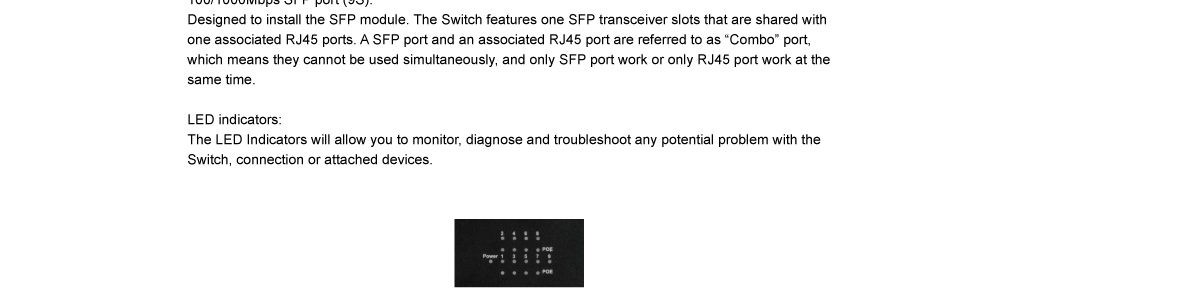

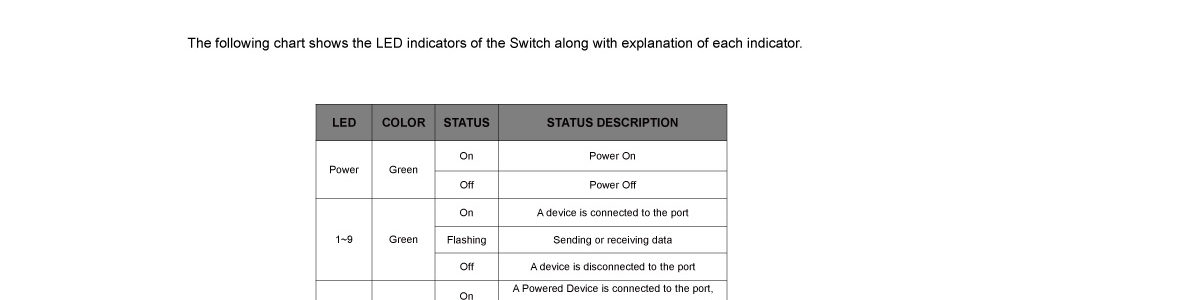

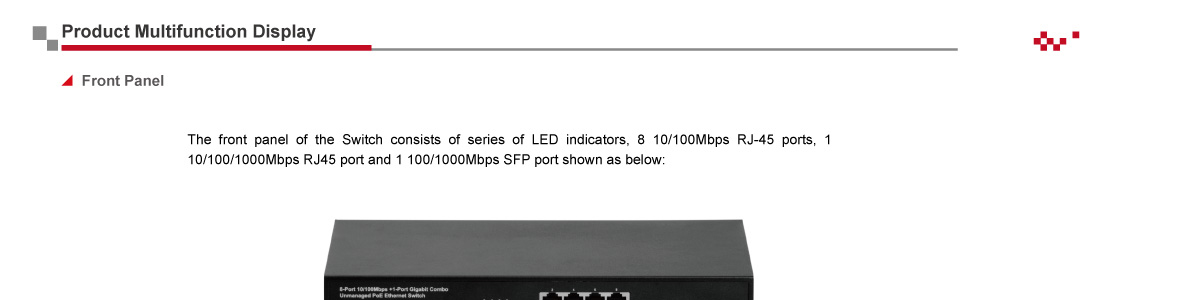

led indicators |
per-port |
link/act：green poe：yellow |
| other | power：green | |
|
environment |
operating temperature: 0℃ - 40℃ |
|
|

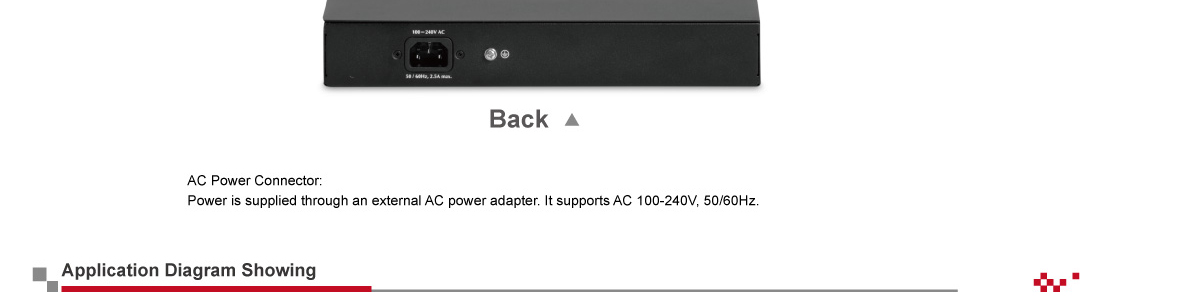

power |
ac 100v~240v 50/60hz 2a (internal power supply) |
|
