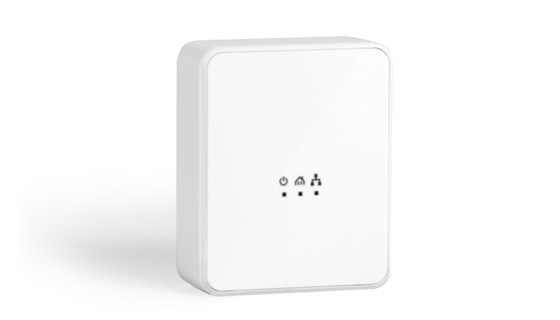

200mbps powerline adapter
model：fr-pl2001e-d

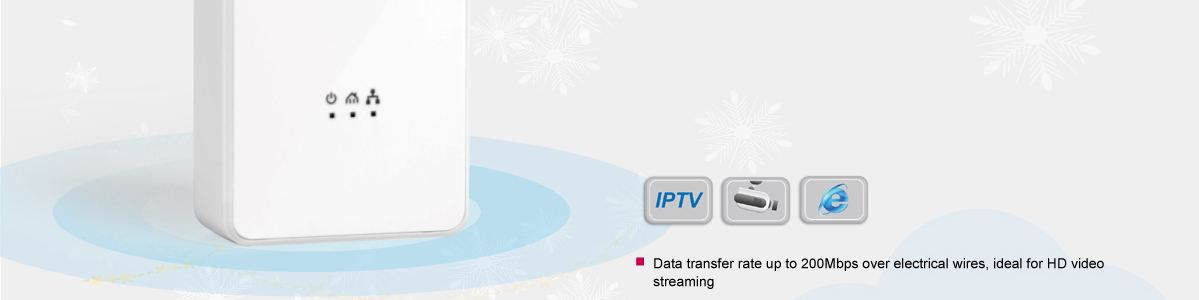

  • data transfer rate up to 200mbps over electrical wires, ideal for hd video streaming
  • no new wires or drilling required, just using existing electrical wires
  • up to 300 meters range over the household power circuit for better performance through wall or across floors
  • power –saving mode automatically reduces power consumption by up to 85%

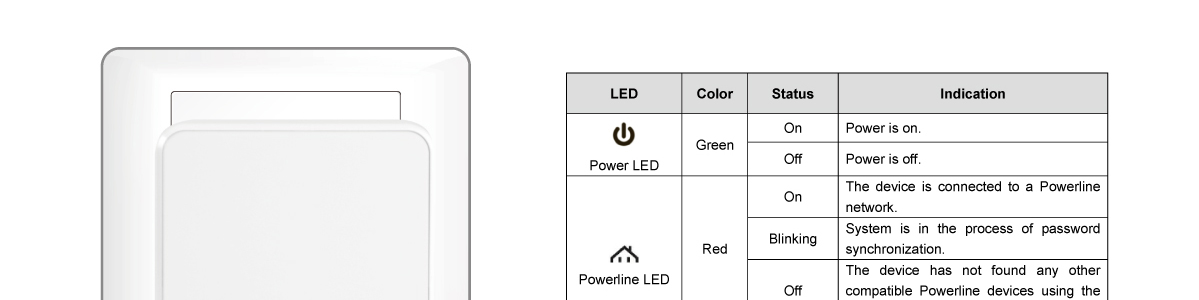

  • led indicators for monitoring power, plc, ethernet




specifications
model fr-pl2001e-d
chipset

qca6410

standards

homeplug av、ieee 802.3、ieee 802.3u

modulation technology

ofdm

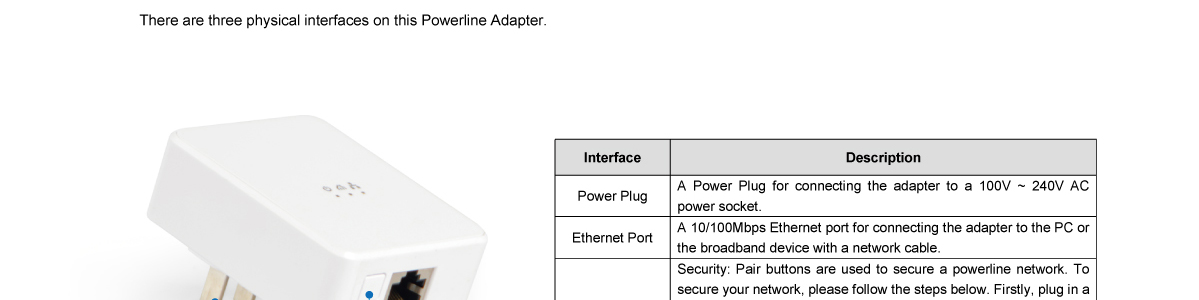

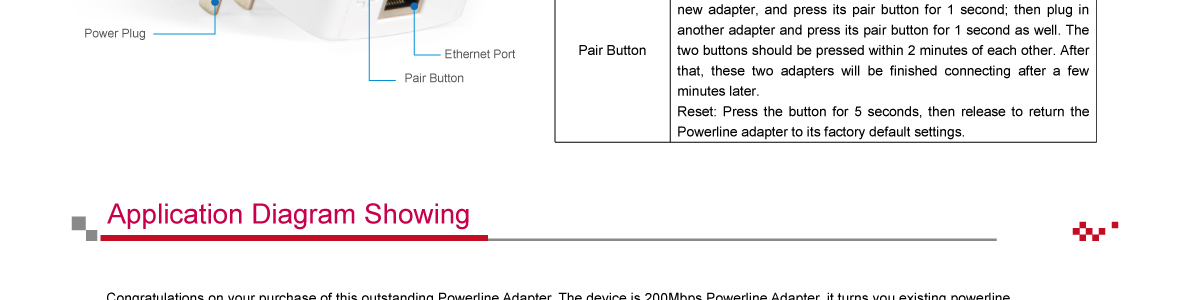

interface

1 x 10/100mbps auto-negotiation ethernet port

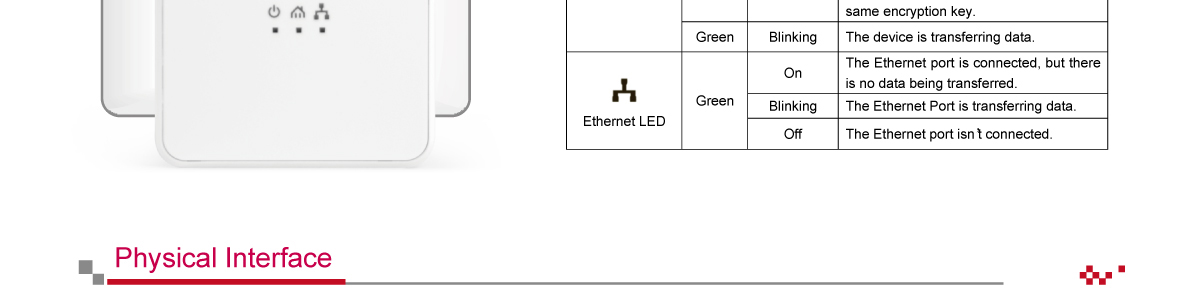

led indicators

 power，plc act，ethernet activity

range

300 meters in house

system requirements

windows 8/7/vista/xp/2000, mac, linux

ac input

ac: 100v~240v 50/60hz

power consumption

＜2w
dimensions (w × d × h) 69.5*56.5*31.8mm

environment

operating temperature: 0℃~40℃
storage temperature: -10℃~70℃
operating humidity: 10%~90% non-condensing
storage humidity: 5%~90% non-condensing
download



  • 2015-09-29
