comply with 802.3i、ieee 802.3u、ieee 802.3ab、ieee 802.3x、ieee 802.3z、ieee802.1q 、ieee802.1p、 ieee802.3af、ieee802.3at
supports poe power up to 30w for each poe port, total power up to 140w for all poe ports

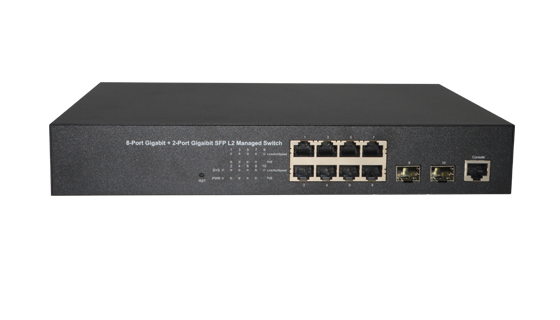

8 x 10/100/1000mbps auto mdi/mdi-x ethernet port
2 x 100/1000mbps sfp port
8k entry mac address table of the switch with auto-learning and auto-aging
supports ieee802.3x flow control for full-duplex mode and backpressure for half-duplex mode
support web interface management
supports qos (quality of service), port mirror, link aggregation protocol
led indicators for monitoring power,system,link/activity,poe
|
model name
|
fr-s3010pegmf-h
|
|
|
chipset
|
rtl8380m+rtl8231+ip808
|
|
|
standards and protocols
|
ieee 802.3i、ieee 802.3u、ieee 802.3ab、ieee 802.3x、ieee 802.3z、ieee802.1q 、ieee802.1p、ieee802.3af、ieee802.3at
|
|
|
interface
|
8 x 10/100/1000mbps auto-negotiation ports 2 x100/1000mbps sfp port 1 xconsole port
|
|
|
network media |
10base-t: utp category 3,4,5 cable (maximum 100m) 100base-tx: utp category 5,5e cable (maximum 100m) 1000base-t: utp category 5e,6 cable (maximum 100m) 1000base-sx:62.5μm/50μm mmf(2m~550m) 1000base-lx:62.5μm/50μm mmf(2m~550m) or 10μm smf（2m~5000m）
|
|
|
transfer method
|
store-and-forward
|
|
|
mac address table
|
8k
|
|
|
switching capacity
|
20gbps
|
|
|
packet forwarding rate
|
14.88mbps
|
|
|
packet buffer
|
4.1mbit
|
|
|
jumbo frame
|
10kbyte
|
|
|
poe ports(rj45)
|
8* poe ports compliant with 802.3at/af
|
|
|
power pin assignment
|
1/2(+),3/6(-)
|
|
|
poe budget
|
140w
|
|
|
indicators |
per device |
power：green. system：green |
|
per port |
link/act/speed：green(1000mbps)/orange(100/10mbps) . poe：orange
|
|
|
power consumption
|
maximum: 160w(220v/50hz)
|
|
|
dimensions（l×w×h）
|
280*180*44mm
|
|
|
environment |
operating temperature: 0℃~45℃ storage temperature: -40℃~70℃ operating humidity: 5%~95% non-condensing storage humidity: 5%~95% non-condensing |
|
