| model | fr-s2010pew-c | |
| chipset |
ip1818+ip108a+ip1001+ip210w+pd69008 |
|
|
standards |
ieee 802.3, ieee 802.3u, ieee802.3ab,ieee 802.3x, ieee 802.3af, ieee 802.3at |
|
|
number of ports |
10base-t: utp category 3,4,5 cable (maximum 100m) |
|
|
capability |
store-and-forward |
supports |
| switching capacity | 3.6gbps | |
| mac address learning | automatically learning, automatically update 4k table | |
|

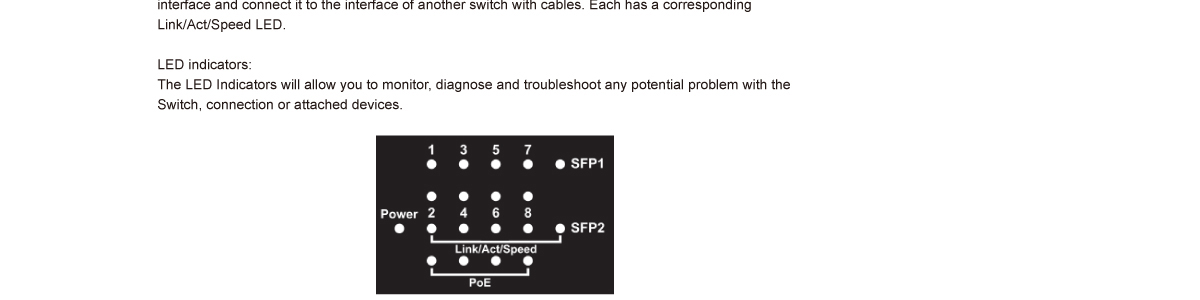

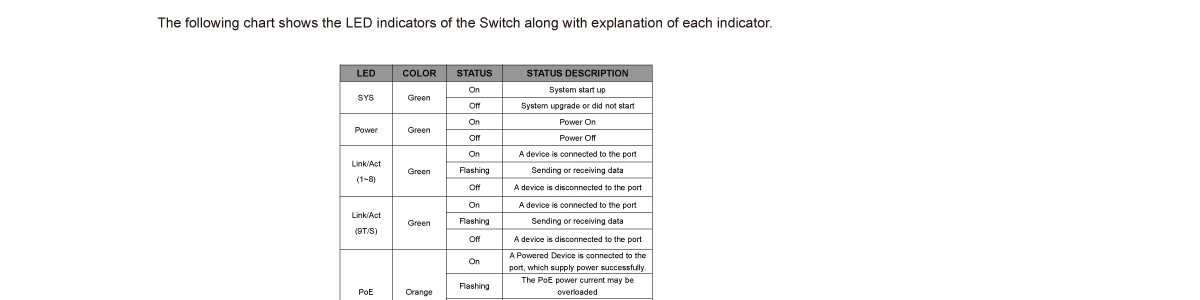

led indicators |
per-port | link/act/ speed: green ；poe: yellow；system: green |
| other | power: green | |
|
environment |
operating temperature: 0℃ - 40℃ |
|
|

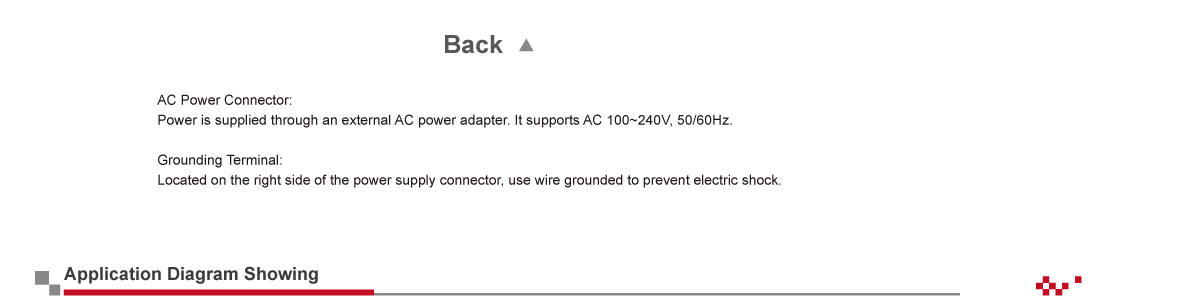

power |
input:100v~240v 50/60hz 2a (internal power supply) |
|
| whether the customization | fullriver |
| language |
chinese&english |
| ip | 192.168.2.1 |
| user/password | admin/admin |
| console&telnet | support the console and telnet to log in and management |
| the basic function | 1、authentication configuration，modify the user name and password 2、system ip configuration 3、reboot/load default setting 4、upgrade 5、system configuration backup/recovery |
| poe | poe with management, support poe power delay and scheduling |
| port | 1、the custom port speed and duplex mode 2、support port aggregation function 3、support port mirror function 4、support the port statistical functions 5、support the bandwidth control 6、support the broadcast storm |
|
vlan |
1、port based vlan |
|
qos |
1、support 3 priority mode, fifo scheduling, strict priority scheduling, queue according to the weighted scheduling |
|
security |
1、support the mac address binding and dynamic mac address table |
|
stp |
1、support the stp, rstp two work modes |
| dhcp relay | 1、support dhcp relay agent and dhcp relay option82 state configuration 2、support a vlan map |
| snmp | 1、support the snmp settings 2、support the trap server |
| igmp | support igmp listens for v1 and v2 |
