comply ieee 802.3i,ieee 802.3u,ieee802.3ab,ieee802.3z,ieee802.3x,ieee802.3az standards
supports ieee802.3af,ieee802.3at standards
supports poe power up to 30w for each poe port, all power up to 370w
supports ieee802.3x flow control for full-duplex mode and backpressure for half-duplex mode

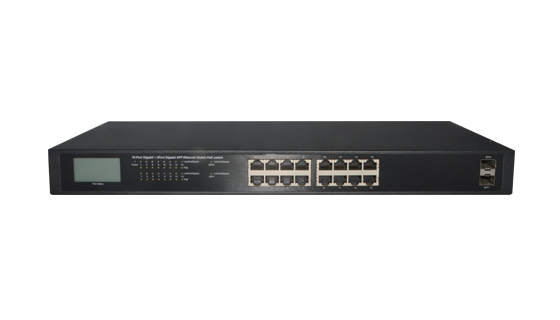

16 x 10/100/1000mbps auto mdi/mdi-x ethernet port
2 x 100/1000mbps sfp slots
led indicators for monitoring power, link/activity
lcd for monitoring poe status real-time
|
model name |
fr-s1018pegf-d |
|
|
chipset |
rtl8382l+rtl8218b+2*rtl8231+pd69100+2*pd69108 |
|
|
standards and protocols |
ieee 802.3i,ieee 802.3u，ieee802.3ab，ieee802.3x,ieee802.3z，ieee802.3az,ieee 802.3at,ieee 802.3af |
|
|
interface |
16 x 10/100/1000mbps auto-negotiation ports 2 x100/1000mbps sfp port |
|
|
network media |
10base-t: utp category 3,4 cable (maximum 100m) 100base-tx: utp category 5,5e cable (maximum 100m) 1000base-t: utp category 5, 5e,6 cable (maximum 100m) 1000base-x:mmf,smf |
|
|
transfer method |
store-and-forward |
|
|
mac address table |
8k |
|
|
switching capacity |
36gbps |
|
|
packet forwarding rate |
26.784mpps |
|
|
packet buffer |
4.1mbit |
|
|
jumbo frame |
9kbyte |
|
|
poe ports(rj45) |
16 x poe ports compliant with 802.3at/af |
|
|
poe budget |
maximum：370w |
|
|
indicators |
per device |
power |
|
per port |
link/activity/speed, poe |
|
|
dispaly |
128*64 dot matrix lcd |
|
|
power supply |
input: 100-240vac, 50/60hz |
|
|
power consumption |
maximum :421.2w(220v) |
|
|
dimensions ( w x d x h ) |
l441.1*w204.3*h44mm |
|
|
environment |
operating temperature: 0℃~40℃ storage temperature: -40℃~70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing |
|
