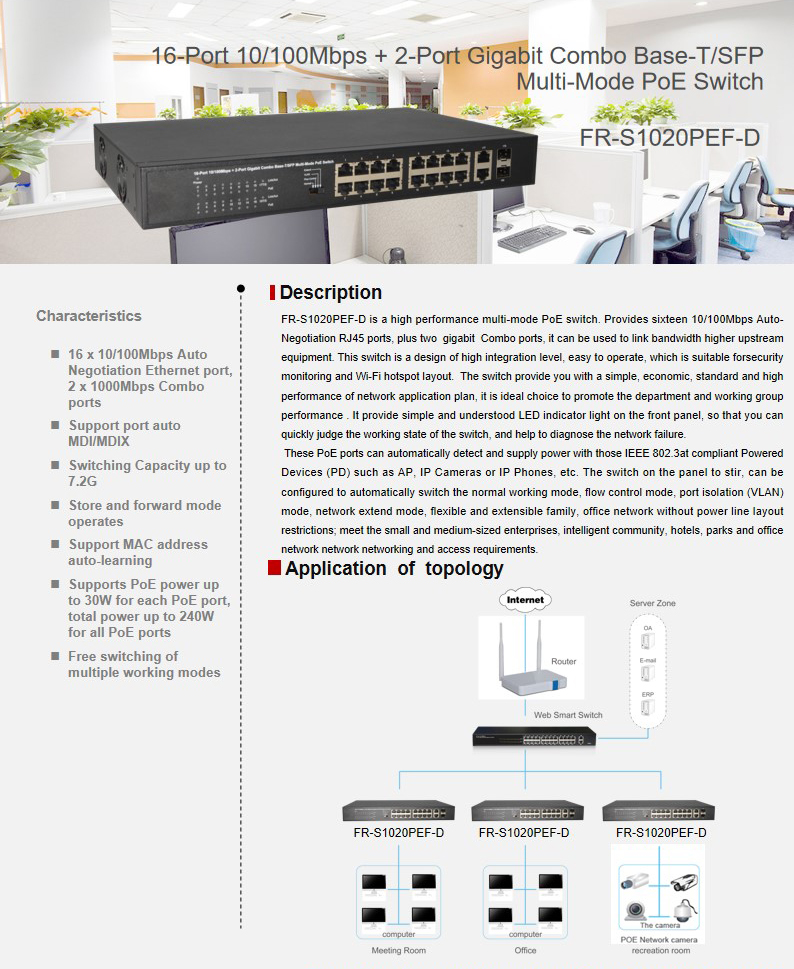

comply with ieee802.3, ieee802.3u, ieee802.3ab, ieee802.3x, ieee802.3az standards
16 x 10/100mbps auto negotiation ethernet port, 2 x 1000mbps combo ports. all port auto mdi/mdix
supports poe power up to 30w for each poe port, total power up to 240w for all poe ports
supports ieee802.3x flow control for full-duplex and backpressure for half-duplex
supports mac address auto-learning and auto-aging
store and forward mode operates
free switching of multiple working modes
led indicators for monitoring pse, link/activity
built in 250w high performance switching power supply
|
model |
fr-s1020pef-d |
|
|
chipset |
ip1829a+2*ar8033+2*ip808 |
|
|
standards |
ieee802.3 , ieee802.3u , ieee802.3ab , ieee802.3x , ieee802.3az , ieee802.3at, ieee802.3af |
|
|
network media (cable) |
10base-t: utp category 3,4,5 cable (maximum 100m) 100base-tx: utp category 5,5e cable (maximum 100m) 1000base-t: utp category 5e,6 cable (maximum 100m) 1000base-sx: 62.5μm/50μm mmf(2m~550m) 1000base-lx: 62.5μm/50μm mmf(2m~550m) or 10μm smf(2m~5000m) |
|
|
transfer method |
store-and-forward |
|
|
switching capacity |
7.2gbps |
|
|
packet forwarding rate |
5.36mbps |
|
|
packet buffer |
4mbit |
|
|
mac address table |
16k |
|
|
jumbo frame |
16kbyte |
|
|
working mode |
normal mode |
switch all ports can communicate with each other |
|
flow control mode |
all ports' flow control functions are disable |
|
|
port isolation (vlan) mode |
1 to 16 can not communicate with each other, but can communicate with the uplink combo port (17t/s,18t/s) |
|
|
extend mode |
1 to 8 port rate down to 10mbps, the farthest transmission distance of up to 250 meters, all ports can communicate with each other |
|
|
number of ports |
16 x 10/100mbps auto-negotiation ports 2 x gigabit combo (rj45 / sfp) port |
|
|
poe ports(rj45) |
16* poe ports compliant with ieee802.3at/af |
|
|
power pin assignment |
1/2(+),3/6(-) |
|
|
poe budget |
240w |
|
|
led indicators |
per port |
link/act: green poe: green |
|
per device |
power: green |
|
|
power supply |
ac 100-240v/50-60hz 250w internal power |
|
|
power consumption |
maximum: 266w(220v/50hz) |
|
|
dimensions ( w x d x h ) |
340*200*43mm |
|
|
environment |
operating temperature: 0℃ - 45℃ storage temperature: -40℃ - 70℃ operating humidity: 10%~90% rh non-condensing storage humidity: 5%~90% rh non-condensing |
|
