fr-s2028wf-c |
|
|
chipset |
ip1826d+ip108a+ip1001 |
|
|
ieee 802.3, ieee 802.3u, ieee 802.3z, ieee 802.3x |
|
|
10base-t: utp category 3,5 cable (maximum 100m) 100base-t: utp category 3,5 cable (maximum 100m) 1000base-x: mmf, smf, |
|
number of ports |
24 x 10/100mbps auto-negotiation ports 2 x 10/100/1000mbps auto-negotiation ports 2 x 1000mbps ( sfp ) fiber ports |
|
led indicators |
link/act |
|
power、system |
|
|
transfer method |
store-and-forward |
|
|
8.8gbps |
|
mac address learning |
automatically learning, automatically update 4k |
|
|
10mbps: 14880pps, 100mbps: 148800pps 1000mbps: 1488000pps |
|
power supply/consume |
input: 100-240vac, 50/60hz 12v 2a consume: 12w（max） |
|
environment |
operating temperature: 0℃~40℃ storage temperature: -10℃~70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing |

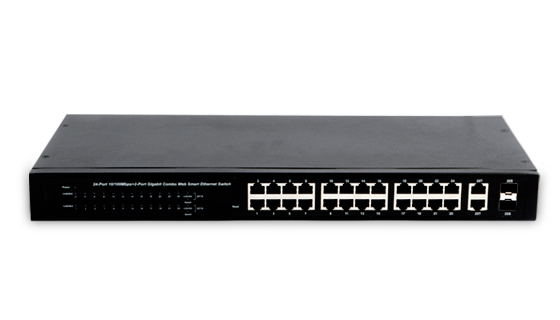

fr-s2028wf-c provides 24 10/100mbps and 2 10/100/1000mbps auto-negotiation ethernet ports and 2x1000mbps ( sfp ) fiber ports. it supports transmission rate auto-negotiation and auto mdi/mdix .the device provides all ports with line speed non-blocking switching .it integrates advanced management and security functions that provide performance and scalability. this switch supports remote and large-range network setup.
fr-s2028wf-c supports vlan、trunk、qos、snmp、port mirroring and port aggregation common managing functions, etc. it is specially designed for use in communities, enterprises and buildings and is the ideal choice for system integrator, isp and engineering application with low cost.
features of 24f+2g combo web smart switch manufacturer
complies with ieee802.3, ieee802.3u, ieee802.3z ethernet standards
24 port switch 24 10/100mbps and 2 10/100/1000mbps auto-negotiation ethernet ports
support for 2 1000mbps ( sfp ) fiber ports (10/100/1000mbps rj45port sharing )
provides 4k mac address table with learning and auto-aging function
supports web interface management
supports flow control
supports http-based switches to upgrade system software, backup and restore configuration files
supports port base vlan and 802.1q tag vlan
supports port aggregation ( trunk) and 3 trunk group
supports designated ip or enabling dhcp client to automatically obtain an ip
supports dynamically storage and forwarding
supports port mirroring
supports qos of multiple service types
built-in high-performance power supply to support ac 100-240v 50/60hz input
19- inch standard installation rack
