model |
fr-s3010fw-c |
|
|
chipset |
ip1818+ip108a+ip210w+ip1001+ip403 |
|
|
standards |
ieee 802.3, ieee 802.3u, ieee 802.3x |
|
|
network media (cable) |
10base-t: utp category 3,5 cable (maximum 100m) |
|
|
number of ports |
8 x 10/100mbps auto-negotiation ports |
|
|
led indicators |
10/100mbps |
link/act |
|
other |
power system |
|
|
transfer method |
store-and-forward |
|
|
switching capacity |
3.6gbps |
|
|
mac address table |
4k |
|
| surge level | 4kv | |
|
transfer method |
store-and-forward |
|
|
frame filtering and forward rate |
10mbps: 14880pps 100mbps: 148800pps 1000mbps: 1488000pps |
|
|
environment |
operating temperature: 0℃~40℃ storage temperature: -10℃~70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing |
|
|
power supply (internal) |
ac100~240v |
|
|
power consumption |
4.5w(max) |
|
|
applicable to the power supply |
12v/1.5a |
|

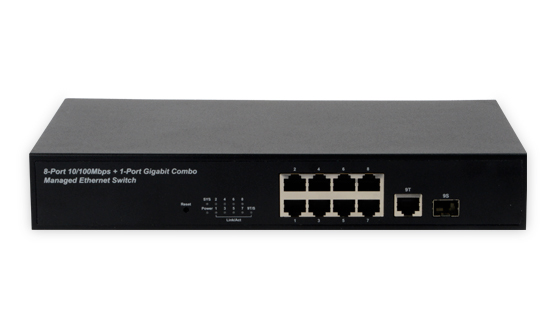

fr-s3010fw-c is the management switch our company independent research and development, provides eight 10/100 mbps port, plus 1 10/100/1000 mbps rj45 port and 1 1000mbps sfp optical mouth (with a 10/100/1000 mbps rj45 port sharing). fr - s3010fw - c overall performance is superior, simple to use, the price is appropriate, support through the whole chinese web interface for system management and upgrade, it's convenient, intuitive for the user and provides the ideal network intelligent community broadband access solution
features of 8 port gigabit combo managed fast ethernet
comply with the ieee 802.3, ieee 802.3 u, ieee802.3 x ,ieee802.3abstandard;
eight 10/100 mbps, 1 10/100/1000 mbps rj45 port, support parallel/cross line automatic
identification (auto mdi/mdix) function; ip1818 supports two types of flow control
mechanism, to half duplex operation pressure and ieee 802.3 x
provides eight port ss - smii, 1 rgmii - based on tcp/udp port.
base - 1000 x parallel converter and a ministry of information industry.support the bandwidth control flow with/without .
built-in 2.75 mb ram control, supporting the packet length is 1536 bytes, store and forward, shared memory, non-blocking architecture.
support flow control back pressure in half duplex provide up to 4 k mac address entries.
configurable mac address table, mirror function support transplantation (tx, rx, tx&rx)
the built-in power supply, 11 inches iron shell design; lightning protection, quick, safe and reliable;
with flow control switch, can be manually control all ports of the flow control function;
