model |
fr-s3018fw-c |
|
|
chipset |
ip1818+ip1001+2*ip108a+ip210w+ip403 |
|
|
standards |
ieee 802.3, ieee 802.3u, ieee802.3x, ieee802.3ab |
|
|
network media (cable) |
10base-t: utp category 3, 4, 5 cable |
|
|
number of ports |
16x10/100mbps auto mdi/mdix ,auto negotiation ports |
|
|
led indicators |
10/100mbps |
link/act(green) |
|
other |
power(green)，system(green) |
|
|
mac address table |
4k |
|
|
transfer method |
store-and-forward |
|
|
switching capacity |
5.2g |
|
|
frame filtering and forward rate |
10mbps: 14880pps, 100mbps: 148800pps 1000mbps：1488000pps |
|
|
surge level |
4kv |
|
|
dimensions (w × d × h) |
441x208x44.3mm (19” metal case) |
|
|
environment |
operating temperature: 0℃~40℃ storage temperature: -10℃~70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing |
|
|
power supply/consumption |
input:100v~240v ac 50/60hz |
|
|
power consumption:12w(max) |
||

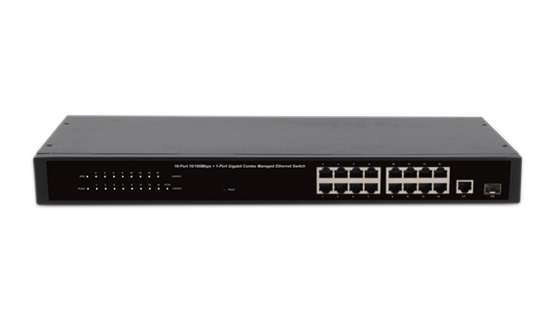

fr-s3018fw-c is a web smart ethernet switch by fullriver (web smart switch supplier) independent research and development. the switch provides 16 10/100mbps ports and 1 gigabit combo port, the seamless network connection. each port independently negotiates for best speed and half-duplex or full-duplex mode, for up to 200mbps of bandwidth per port, gigabit combo port for up to 2gbps. support vlan, qos, loop function, bandwidth control, mac constraint you can easily setup them, convenient and efficient management of your ethernet by web pages.
features of 16-ports 10/100mbps + 1-port gigabit combo web smart ethernet
comply with ieee 802.3, ieee 802.3u, ieee802.3x, ieee802.3ab standards
support auto-negotiation for 10/100mbps and duplex mode
support auto-mdi/mdix for each port
16 port gigabit switch support store-and-forward switching method
support wire-speed and non-blocking performance
support hardware-based learning and aging
support web page management
support link aggregation, vlan, qos, loop detection and prevention, port mirroring, port isolation, bandwidth control, mac constraint, igmp and so on
supports 4kv surge immunity for all utp ports
19 inch steel casing design, build-in power supply.
