model |
fr-s3018gfm-c |
|
chipset |
rtl8382m+1*rtl8218+2*rtl8231 |
|
standards |
ieee 802.3，ieee 802.3u，ieee 802.3ab，ieee802.3x，ieee802.3z，eee802.3ad，ieee802.1q，ieee802.1p |
|
network media (cable) |
10base-t: utp category 3,4,5 cable (maximum 100m) 100base-tx: utp category 5,5e cable (maximum 100m) 1000base-t: utp category 5e,6 cable (maximum 100m) |
|
number of ports |
16 x 10/100/1000mbps auto-negotiation ports |
|
led indicators |
all ports：link/act/speed |
|
other：power |
|
|
transfer method |
store-and-forward |
|
switching capacity |
52g |
|
mac address learning |
automatically learning, automatically update 8k table |
|
frame filtering and forward rate |
10mbps: 14880pps, 100mbps: 148800pps, 1000mbps: 1488000pps |
|
dimensions (w × d × h) |
440x205x44mm |
|
environment |
operating temperature: 0℃~40℃ storage temperature: -10℃~70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing |
|
power supply |
ac 100v~240v 50/60hz (internal power supply) |
|
power consumption |
12w(max.) |

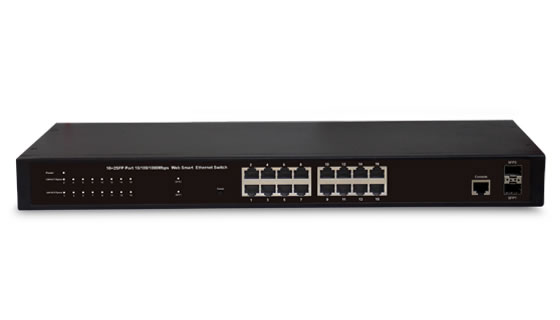

fr-s3018gfm-c is 16 + 2-sfp port 10/100/1000mbps gigabit ethernet switch。the switch provides the seamless network connection. this device integrates 1000mbps gigabit ethernet, 100mbps fast ethernet and 10mbps ethernet network capabilities in a highly flexible package. with 16-10/100/1000mbps auto-negotiation rj45 ports, all ports support auto mdi/mdix function. the switch with a low-cost, easy-to-use, high performance upgrade your old network to a 1000mbps gigabit network. it is essential to helping solve network bottlenecks that frequently develop as more advanced computer users and newer applications continue to demand greater network resources.
