model |
fr-s3028fm-c |
|
chipset |
rtl8332m+2xrtl8208l+rtl8212b+rtl8231 |
|
standards |
ieee 802.3, ieee 802.3u, ieee 802.3ab, ieee802.3z,ieee802.3x, |
|
number of ports |
24 x10/100mbps auto-negotiation ports |
|
mac address table |
8k |
|
network media (cable) |
10base-t: utp category 3,4,5 cable (maximum 100m) |
|
transfer method |
store-and-forward |
|
frame filtering and forward rate |
10mbps：14880pps, |
|
switching capacity |
8.8gbps |
|
led indicators |
all ports：link/act |
|
dimensions (w × d × h) |
440x205x44mm |
|
environment |
operating temperature: 0℃~40℃ storage temperature: -10℃~70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing |
|
power supply |
ac 100v~240v 50/60hz 0.5a(max.) |
|
power consumption |
10w(max.) |

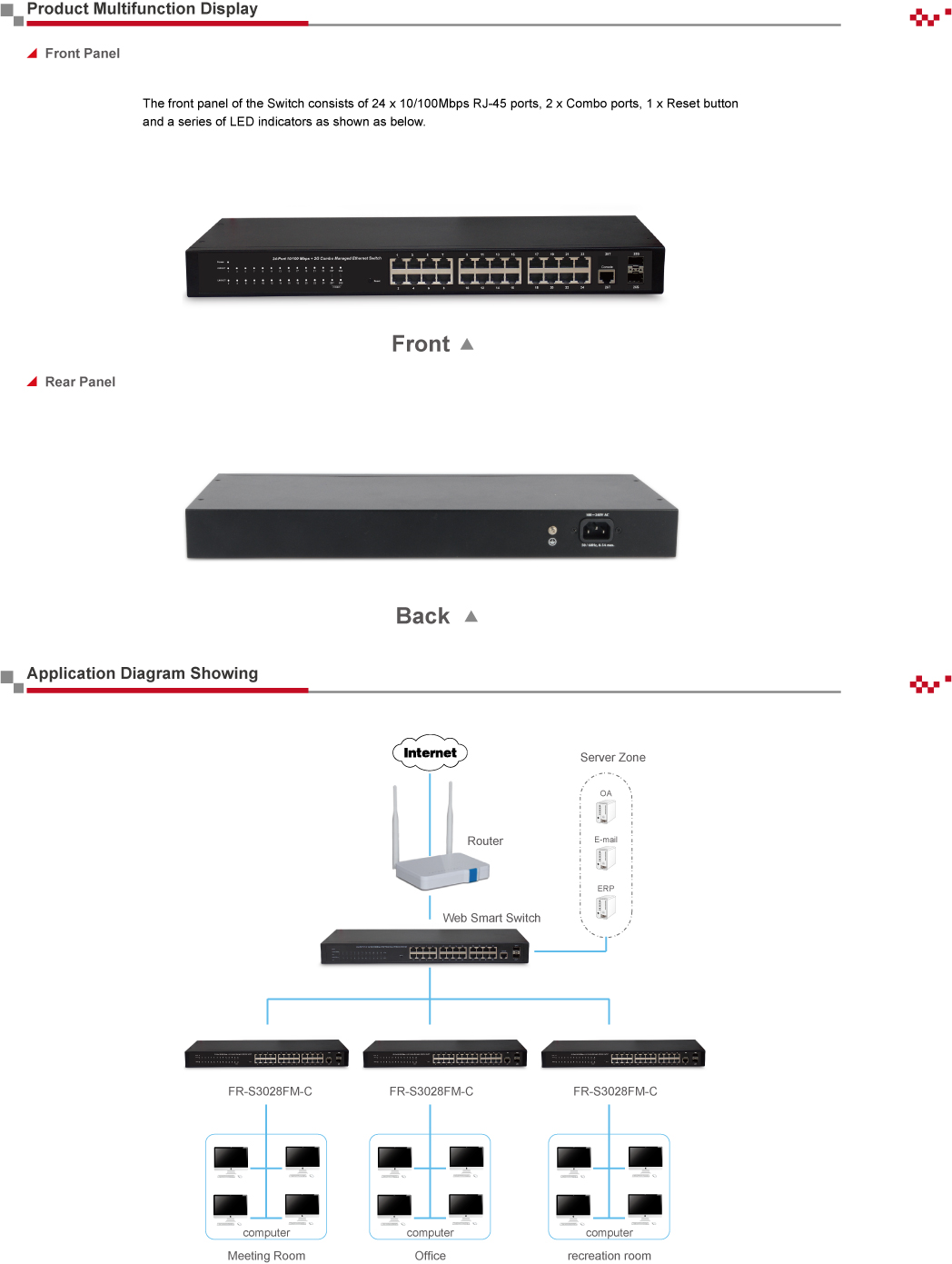

provides twenty-four 10/100mbps self-adaption rj45 port, and two alternative gigabit ports ---two 10/100/1000mbps rj45 port and two 100/1000mbps sfp optical ports, all ports support wire-speed forwarding, can provide you with larger network flexibility. support vlan acl based on port, easily implement network monitoring, traffic regulation, priority tag and traffic control. support traditional stp/rstp/mstp 2 link protection technology; greatly improve the ability of fault tolerance, redundancy backup to ensure the stable operation of the network. support acl control based on the time, easy control the access time accurately. support 802.1x authentication based on the port and mac, easily set user access. perfect qos strategy and plenty of vlan function, easy to maintenance and management, meet the networking and access requirements of small and medium-sized enterprises, intelligent village, hotel, office network and campus network.
