comply with ieee802.3i, ieee802.3u, ieee802.3ab, ieee802.3x, ieee802.3z, eee802.3ad standards
supports ieee802.3x flow control for full-duplex mode and backpressure for half-duplex mode
supports mac address auto-learning and auto-aging
store and forward mode operates
support snmp/rmon/telent
web-based management support
supports ieee802.1q vlan,4k vlan table
support ieee802.1p priority queues
support 1.5k entries acl
support storm control
support qos、port mirroring、link aggregation protocol
led indicators for monitoring power, link/activity ,speed
internal power adapter supply
|
model |
fr-s3012mf-c |
|
chipset |
rtl8332m++rtl8214fc+2*rtl8231 |
|
standards |
ieee 802.3i，ieee 802.3u，ieee 802.3ab，ieee802.3x，ieee802.3z，eee802.3ad，ieee802.1p，ieee802.1q |
|
network media (cable) |
10base-t: utp category 3,4,5 cable (maximum 100m) 100base-tx: utp category 5,5e cable (maximum 100m) 1000base-t: utp category 5e,6 cable (maximum 100m) 1000base-sx:62.5μm/50μm mmf(2m~550m) 1000base-lx:62.5μm/50μm mmf(2m~550m) or 10μm smf（2m~5000m） |
|
transfer method |
store-and-forward |
|
switching capacity |
9.6gbps |
|
packet forwarding rate |
7.14mpps |
|
|
packet buffer |
4.1mbit |
|
|
mac address table |
8k |
|
|

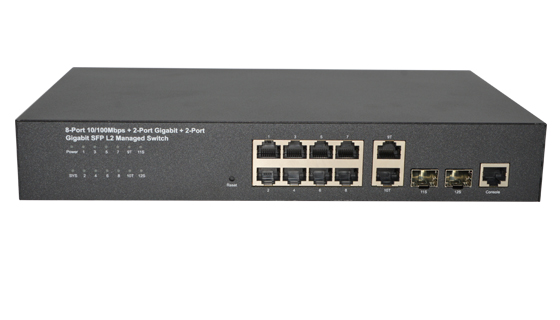

number of ports |
8 x 10/100mbps auto-negotiation ports 2 x 10/100/1000mbps auto-negotiation ports 2 x gigabit sfp ports 1 x rj45 console port |
|
|
led indicators |
1-8 port |
10/100mbps link/act:green |
|
9-12 port and sfp |
10/100mbps link/act:orange 1000mbps link/act: green |
|
|
other |
power: green sys:green |
|
|
power supply |
ac 100-240v/50-60hz internal power |
|
|
power consumption |
maximum:6.9w(220v/50hz) |
|
|
dimensions ( w x d x h ) |
280*180*44mm |
|
|
environment |
operating temperature: 0℃ - 45℃ storage temperature: -40℃ - 70℃ operating humidity: 10%~90% rh non-condensing storage humidity: 5%~90% rh non-condensing |
|
