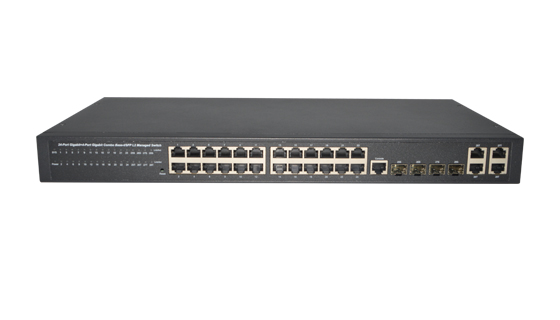

24-port gigabit + 4-port gigabit combo base-t/sfp l2 managed
model：

comply with ieee802.3i, ieee802.3u, ieee802.3ab, ieee802.3x, ieee802.3z, eee802.3ad standards
supports ieee802.3x flow control for full-duplex mode and backpressure for half-duplex mode
supports mac address auto-learning and auto-aging
store and forward mode operates
support snmp/rmon/telent
supports ieee802.1q vlan,4k vlan table
support ieee802.1p priority queues
support 2k+256-entry ingress and egress acl
support storm control
support qos、port mirroring、link aggregation protocol
led indicators for monitoring power, link/activity ,speed
web-based management support
internal power adapter supply

specifications

model	fr-s3128gc
chipset	rtl8382m+2rtl8218b-vc+rtl8214fc+3rtl8231
standards	ieee 802.3i，ieee 802.3u，ieee 802.3ab，ieee802.3x，ieee802.3z，eee802.3ad，ieee802.1p，ieee802.1q
network media (cable)	10base-t: utp category 3,4,5 cable (maximum 100m) 100base-tx: utp category 5,5e cable (maximum 100m) 1000base-t: utp category 5e,6 cable (maximum 100m) 1000base-sx:62.5μm/50μm mmf(2m~550m) 1000base-lx:62.5μm/50μm mmf(2m~550m) or 10μm smf（2m~5000m）
transfer method	store-and-forward
switching capacity	56gbps

packet forwarding rate		41.66mbps
packet buffer		4.1mbit
mac address table		8k
jumbo frame		9kbyte
number of ports		24 x 10/100/1000mbps auto-negotiation ports 4 x gigabit combo ports 1 x rj45 console port
led indicators	per port	10/100mbps link/act/speed:orange 1000mbps link/act/speed: green
	per device	power: green sys:green
power supply		ac 100-240v/50-60hz internal power
power consumption		maximum:20w(220v/50hz)
dimensions ( w x d x h )		44020844mm
environment		operating temperature: 0℃ - 45℃ storage temperature: -40℃ - 70℃ operating humidity: 10%~90% rh non-condensing storage humidity: 5%~90% rh non-condensing
