| model |

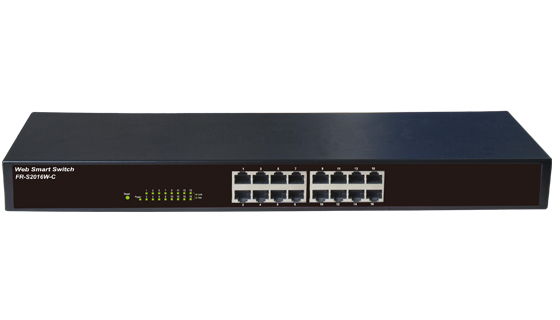

fr-s2016w-c |
|
| chipset |
ip1717+ip108a+ip210w |
|
|
standards |
ieee 802.3, ieee 802.3u, ieee 802.3x |
|
|
network media (cable) |
10base-t: utp category 3, 4, 5 cable (maximum 100m) 100base-tx: utp category 5, 5e cable (maximum 100m) |
|
|
number of ports |
16 x 10/100mbps auto-negotiation ports |
|
|
led indicators |
10/100m |
link/act |
|
other |
power |
|
|
transfer method |
store-and-forward |
|
|
switching capacity |
3.2g |
|
|
frame filtering and forward rate |
10mbps: 14880pps 100mbps: 148800pps |
|
|
dimensions (w × d × h) |
440 ×140 ×44mm |
|
|
power supply/consume |
input: 100-240v～ 50-60hz 0.6a |
|
|
environment |
operating temperature: 0℃~40℃ storage temperature: -40℃~70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing |
|
by sharing the internet, users can check e-mail, browse the web, chat with friends and family, and play online games with their own computer. to increase the functionality of your network, you can also add other ethernet-enabled devices such as a print server, network-attached storage (nas), and internet camera.description
description of 16 port 10/100 mbps managed fast ethernet switch
the 16 port 10/100mbps ethernet switch provides an excellent solution for expanding your ethernet network, and saving your time to transfer bandwidth-intensive music, video, photos, graphic, and data files. by sharing the internet, users can check e-mail, browse the web, chat with friends and family, and play online games with their own computer. to increase the functionality of your network, you can also add other ethernet-enabled devices such as a print server, network-attached storage (nas), and internet camera.
features of 16 port 10/100 mbps managed fast ethernet switch manufacturer
comply with ieee 802.3, iee802.3u standards
16 10/100base-t ethernet ports
support web page management
support port mirroring, bandwidth control, vlan, trunk, qos, mac address filter, igmp, stride vlan, and so on
support auto-negotiation for 10/100mbps and duplex mode
support auto-mdi/mdix for each port
support full/half duplex transfer mode for 10/100mbps
support store-and-forward switching method
16 port gigabit switch support wire-speed and non-blocking performance
support hardware-based learning, and aging
support 4k mac addresses
support broadcast and multicast storm control
support jumbo frame at all speeds (10/100mbps)
