| model |
fr-s2024w-c |
|
| chipset |
ip1725+ip210w |
|
|
standards |
ieee802.3 10base-t, ieee802.3u 100base-tx |
|
|
network media (cable) |
10base-t: utp category 3, 4, 5 cable (maximum 100m) 100base-tx: utp category 5, 5e cable (maximum 100m) |
|
|
number of ports |
24 x 10/100mbps auto-negotiation ports |
|
|
led indicators |
10/100m |
link/act |
|
other |
power |
|
|
transfer method |
store-and-forward |
|
|
mac address learning |
automatically learning, automatically update |
|
|
environment |
operating temperature: 0℃ - 40℃ storage temperature: -10℃ - 70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing |
|
|
dimensions (l × w × h) |
dimensions (l × w × h) |
|
|
power supply |
input: 100-240v～ 50-60hz 0.6a |
|

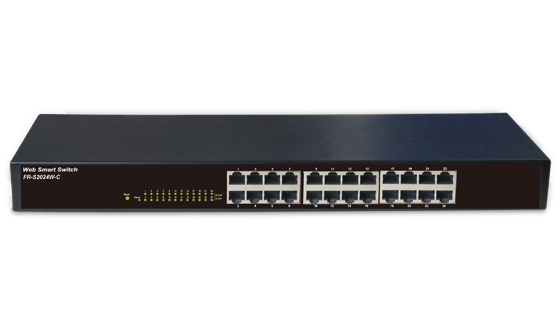

description of 24 port 10/100 mbps managed fast ethernet switch
enabling you to save time transferring bandwidth-intensive music, video, photos, graphic, and data files. by sharing the internet, users can check e-mail, browse the web, chat with friends and family, and play online games using their own computer. to increase the functionality of your network, you can also add other ethernet-enabled devices such as a print server, network-attached storage (nas), and internet camera. and it is
smart switch which can be configured by web based interface. including administrator, port management, vlan setting, each port statistics, trunking setting, qos setting, security filter, configuration/ backup/recovery, miscellaneous, log out, and so on.
features of 24 port 10/100 mbps managed fast ethernet switch
ø comply with ieee 802.3, iee802.3u standards
ø 24 10/100m base-t ethernet ports
ø support auto-negotiation for 10/100mbps and duplex mode
ø support auto-mdi/mdix for each port
ø support full/half duplex transfer mode for 10/100mbps,full-duplex transfer
ø support store-and-forward switching method
ø support wire-speed and non-blocking performance
ø support hardware-based learning, and aging
ø support broadcast and multicast storm control
ø 24 port gigabit switch support packet length up to 1538 bytes
ø support flow control
ø optional mac address learning
ø support port mirroring function (in, out, in&out)
ø support flexible 3 trunking groups
ø support vlan
ø port based cos
ø 802.1q priority tag based
ø priority algorithm
ø support port security
ø mac address based
ø ip address based
ø tcp/udp port based
ø supports 5 state for spanning tree protocol: blocking/ listening/ learning/ forwarding/
