| model |
fr-s2016w-d |
|
| chipset |
rtl8316s |
|
|
standards |
ieee802.3, ieee802.3u , ieee802.3x , ieee 802.3az, ieee 802.3ad |
|
|
network media (cable) |
10base-t: utp category 3, 4, 5 cable (maximum 100m) 100base-tx: utp category 5, 5e cable (maximum 100m) |
|
|
number of ports |
16 x 10/100mbps auto mdi/mdix ,auto negotiation ports |
|
|
led indicators |
10/100m |
link/act(green),speed(100m:green,10m:off) |
|
other |
power(green) |
|
|
transfer method |
store-and-forward |
|
|
switching capacity |
32g |
|
|
mac address table |
8192 | |
|
mac address learning |
automatically learning, automatically update |
|
|
frame filtering and forward rate |
10mbps: 14880pps, 100mbps: 148800pps |
|
|
dimensions (w × d × h) |
280x180x44.3mm (11” metal case) |
|
|
environment |
operating temperature: 0℃~40℃ storage temperature: -10℃~70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing |
|
|
power supply/consumption |

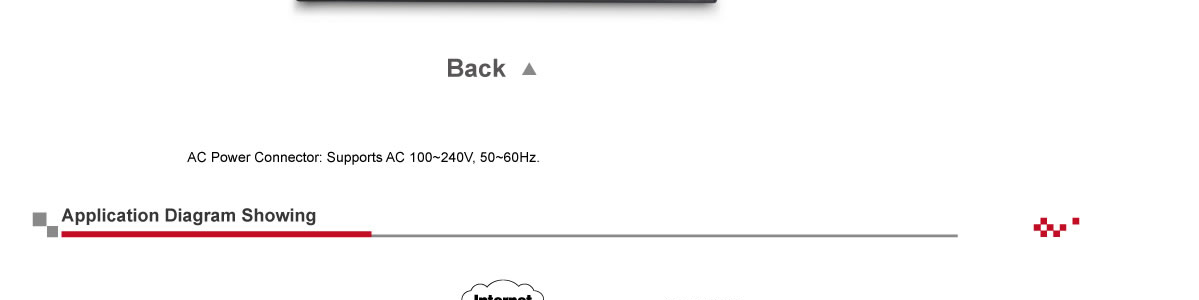

input: 100-240v～50-60hz 0.3a consumption: 5w（max） |
|
description of
allports are auto speed negotiating, and have automatic mdi/mdi-x crossover detection, so you don't have to worry about the cable type. each port independently negotiates for best speed and half-duplex or full-duplex mode, for up to 200mbps of bandwidth per port. fast store-and-forward switching prevents damaged packets from being passed on into the network.support vlan, qos, loop function, bandwidth control, mac constraint you can easily setup them, convenient and efficient management of your ethernet by web pages, support ieee802.3az energy efficient ethernet (eee), reduce power consumption by detection cable length and operating loading,auto adjust signal intensity, reduce energy consumption, protect the environment.
16 port 10/100mbps web smart ethernet switch manufacturer
ø sixteen 10base-t/100base-tx ethernet ports
ø support auto-negotiation for 10/100mbps and duplex mode
ø support auto-mdi/mdix for each port
ø support full/half duplex transfer mode for 10/100mbps
ø support store-and-forward switching method
ø complies with ieee 802.3, ieee 802.3u, ieee802.3x, ieee 802.3az, ieee802.3ad
ø support wire-speed and non-blocking performance
ø support hardware-based learning and aging
ø support 8192 mac addresses
ø supports port-based and mac-based flow control mechanisms
ø support broadcast and multicast storm control
ø support 2kb jumbo frame at all speeds (10/100mbps)
ø support web page management
ø support link aggregation, vlan, qos,
ø internal universal power supply
ø desktop or eia 11-inch equipment rack installation
