| model |
fr-s3024g-c |
| chipset |
rtl8382m+2*rtl8218+2*rtl8231 |
|
standards |
ieee 802.3，ieee 802.3u，ieee 802.3ab，ieee802.3x，ieee802.3z，eee802.3ad，ieee802.1q，ieee802.1p |
|
network media (cable) |
10base-t: utp category 3,4,5 cable (maximum 100m) 100base-tx: utp category 5,5e cable (maximum 100m) 1000base-t: utp category 5e,6 cable (maximum 100m) |
|
number of ports |

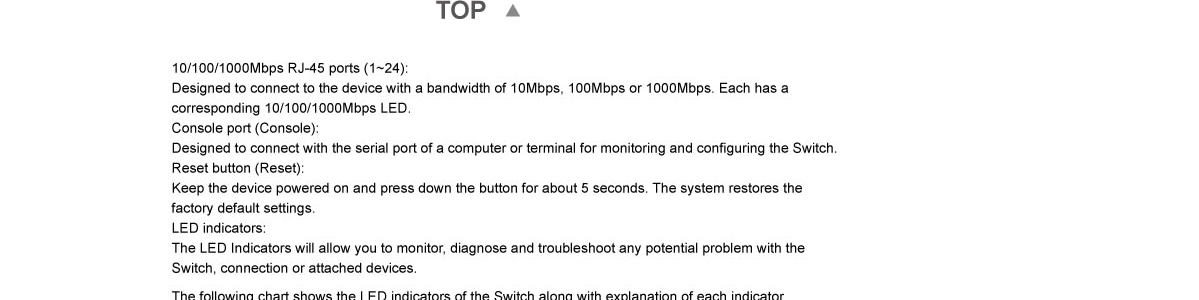

24 x 10/100/1000mbps auto-negotiation ports 1 x rj45 console port |
|

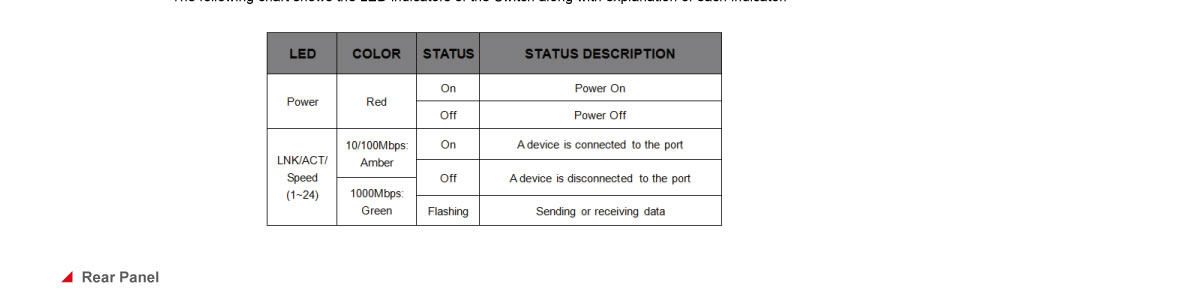

led indicators
|
all ports：link/act/speed |
|
other：power |
|
|
transfer method |
store-and-forward |
|
switching capacity |
52g |
|
mac address learning |
automatically learning, automatically update 8k table |
|
frame filtering and forward rate |
10mbps: 14880pps, 100mbps: 148800pps, 1000mbps: 1488000pps |
|
environment |
operating temperature: 0℃~40℃ storage temperature: -10℃~70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing |
|
dimensions (l × w × h) |
440*205*44 mm |
| power supply |

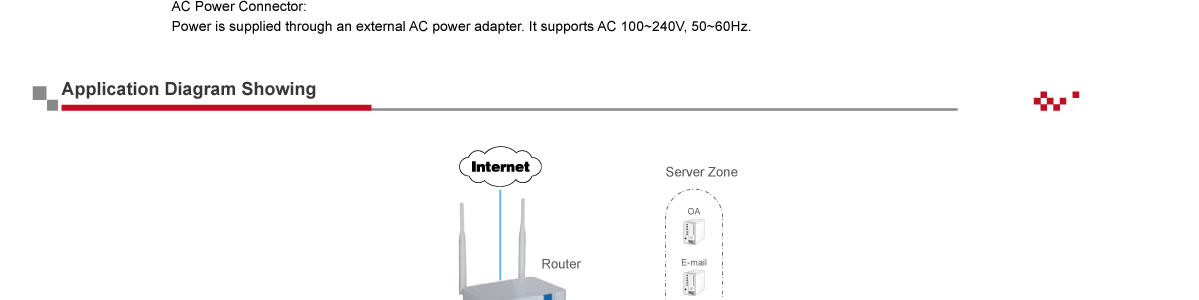

ac 100v~240v 50/60hz (internal power supply) |
|
power consumption |
20w(max) |

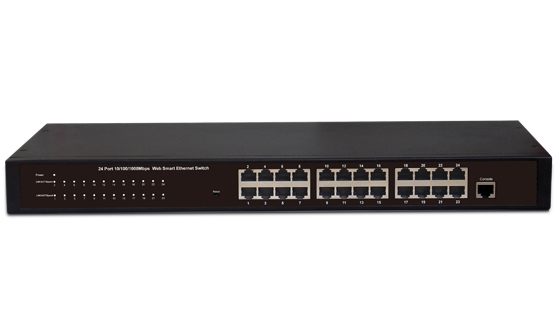

the switch provides the seamless network connection. this device integrates 1000mbps gigabit ethernet, 100mbps fast ethernet and 10mbps ethernet network capabilities in a highly flexible package. with 24-10/100/1000mbps auto-negotiation rj45 ports, all ports support auto mdi/mdix function. the switch with a low-cost, easy-to-use, high performance upgrade your old network to a 1000mbps gigabit network. it is essential to helping solve network bottlenecks that frequently develop as more advanced computer users and newer applications continue to demand greater network resources.
the switch is easy to install and use. it requires no configuration and installation. it is a great selection for office network.
features of 24 port gigabit web smart ethernet switch
comply with ieee802.3, ieee802.3u, ieee802.3ab, ieee802.3x, ieee802.3z, eee802.3ad standards
supports ieee802.3x flow control for full-duplex mode and backpressure for half-duplex mode
supports mac address auto-learning and auto-aging
store and forward mode operates
support snmp/rmon/telent
supports ieee802.1q vlan,4k vlan table
support ieee802.1p priority queues
support acl function, 1.5k-entry alc table
support storm control
24 port switch support qos、port mirroring、link aggregation protocol
led indicators for monitoring power, link/activity
web-based management support
internal power adapter supply
