| model |
fr-s1005d-c |
| chipset |
rtl8305nb |
|
standards |
ieee802.3 10base-t, ieee802.3u 100base-tx, ieee802.3az |
|
network media (cable) |
10base-t: utp category 3,4,5 cable (maximum 100m) 100base-t: utp category 5 cable (maximum 100m) |
|
number of ports |

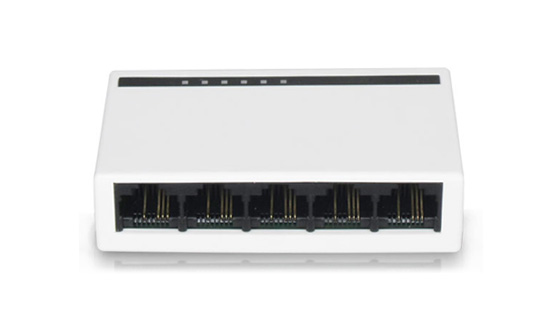

5 x 10/100mbps auto-negotiation ports |
|

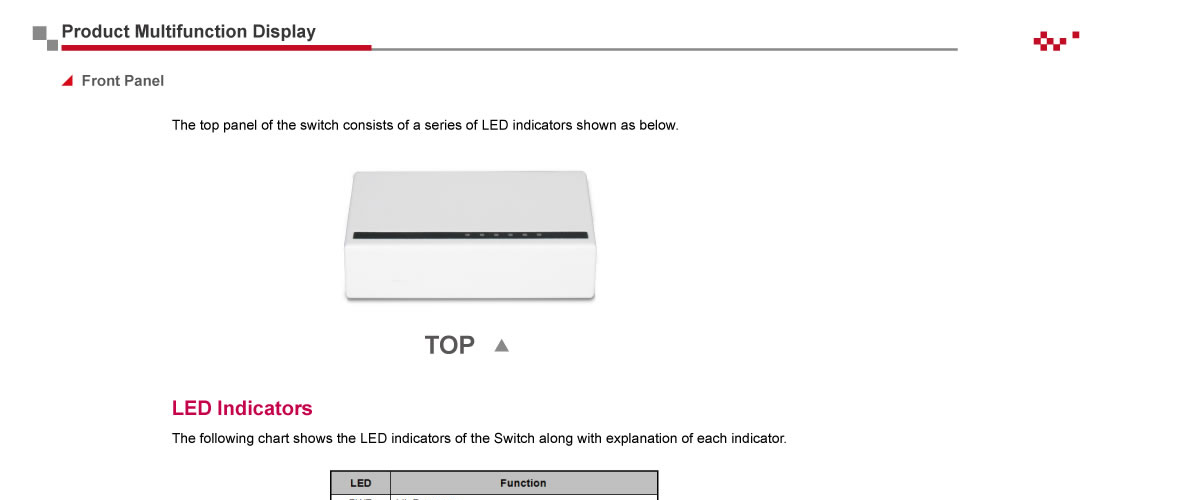

led indicators |
link/act、power |
|
transfer method |
store-and-forward |
|
switching capacity |
1gbps |
|
mac address learning |
automatically learning, 1k |
|
frame filtering and forward rate |
10mbps: 74.5kpps, 100mbps: 745kpps |
|
dimensions (w × d × h) |
77*46*21 mm |
|
environment |
operating temperature: 0℃ - 40℃ storage temperature: -40℃ - 70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing |
the switch provides 5-10/100mbps auto-negotiation rj45 ports, all ports support auto mdi/mdix function, the switch with a low-cost, easy-to-use, high performance, seamless and standard upgrade to improve your old network to a 100mbps network, be the same with small office and home,it will boost your network performance up to full duplex data transfer.complies with ieee 802.3, ieee 802.3u, ieee802.3x、ieee802.3az standards 5 10/100mbps auto-negotiation rj45 ports supporting auto-mdi/mdix supports ieee802.3x flow control for full-duplex mode and backpressure for half-duplex mode store an
