| model | fr-s1018df-d | |
| chipset |
rtl8325d+rtl8211fs |
|
|
standards |
ieee 802.3、ieee 802.3u、ieee802.3ab、ieee802.3x、ieee802.3az |
|
|
number of ports |
16 x 10/100mbps auto-negotiation ports |
|
|
network media (cable) |
10base-t: utp category 3, 4, 5 cable (maximum 100m) eia/tia-568 100ù stp (maximum 100m) 100base-tx: utp category 5, 5e cable (maximum 100m) eia/tia-568 100ù stp (maximum 100m) 1000base-t: utp category 5e, 6 cable (maximum 100m) | |
|
capability |
store-and-forward |
supports |
| switching capacity | 5.2gbps | |
| mac address learning | 8k | |
|

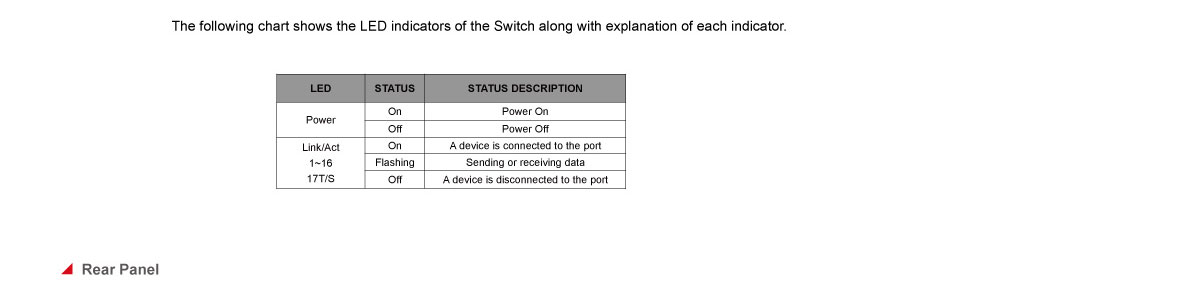

led indicators |
per-port (green) |
link/act |
| other (green) | power | |
|
environment |
operating temperature: 0℃ - 40℃ |
|
|
power |
ac 100v~240v 50/60hz 0.5a (internal power supply) power consumption：max 4.5(watts) |
|
