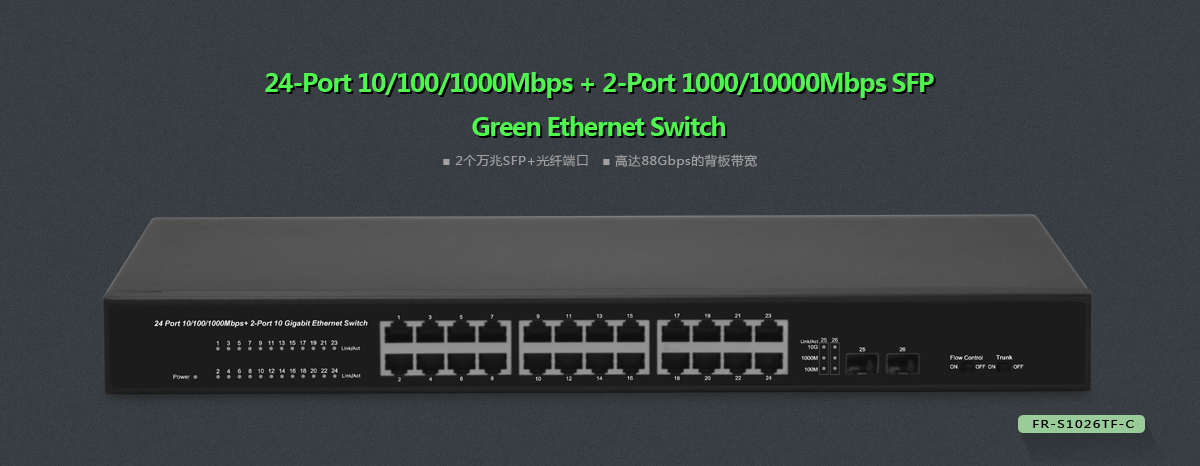

| model | fr-s1026tf-c | |
| chipset |
rtl8396l+3*rtl8218b+2*rtl8231 |
|
|
standards |
ieee 802.3i, ieee 802.3u, ieee802.3ab,ieee 802.3x, ieee802.3az,ieee802.3ae |
|
|

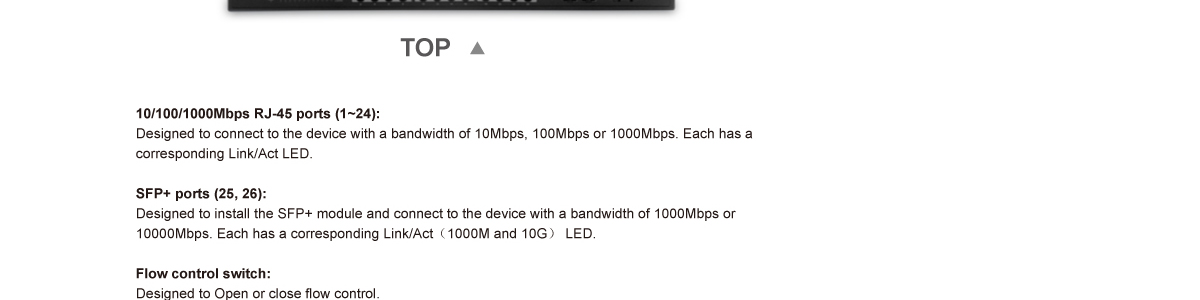

number of ports |
24 x 10/100/1000mbps auto-negotiation ports |
|
|
network media (cable) |
10base-t: utp category 3, 4, 5 cable (maximum 100m) eia/tia-568 100ù stp (maximum 100m) 100base-tx: utp category 5, 5e cable (maximum 100m) eia/tia-568 100ù stp (maximum 100m) 1000base-t: utp category 5e, 6 cable (maximum 100m) |
|
|
capability |
store-and-forward | supports |
| switching capacity | 88gbps | |
| mac address learning | automatically learning, automatically update 16k table | |
|

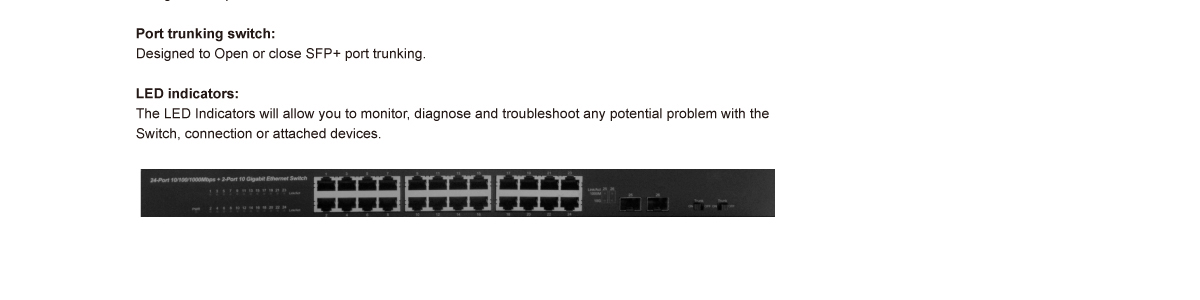

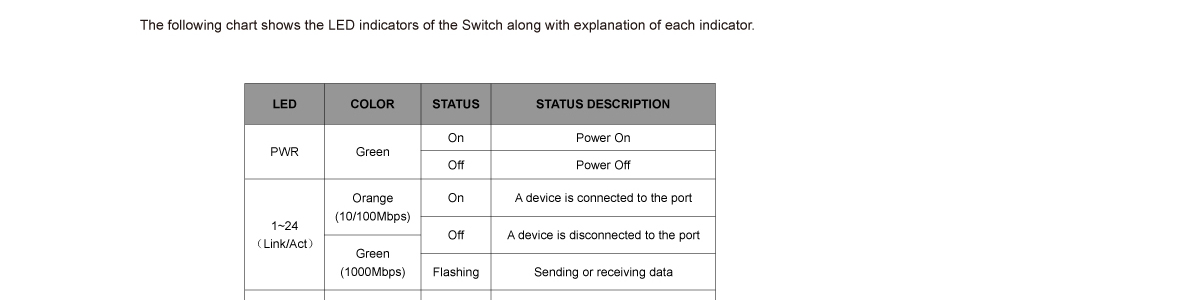

led indicators |
utp port |
link/act/speed |

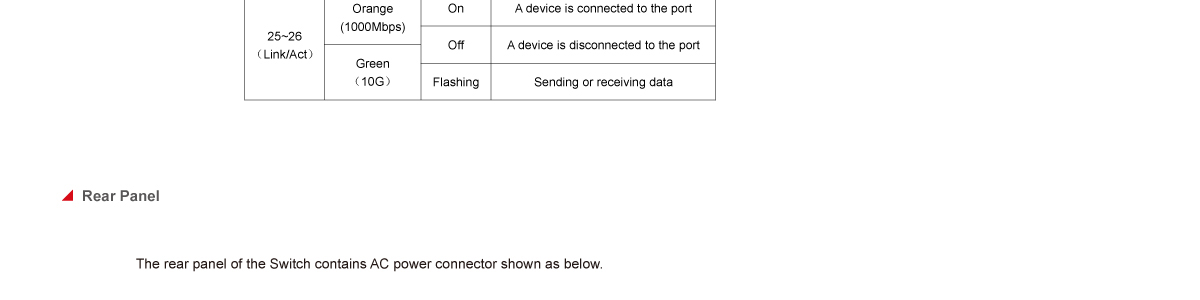

| sfp+ port | link/act/speed 1000mbps:orange 10000mbps:green |
|
| other | power：green | |
|
environment |
operating temperature: 0℃ - 40℃ |
|
|
dimensions (w × d × h) |
440x205x44mm (19” metal case) |
|
|

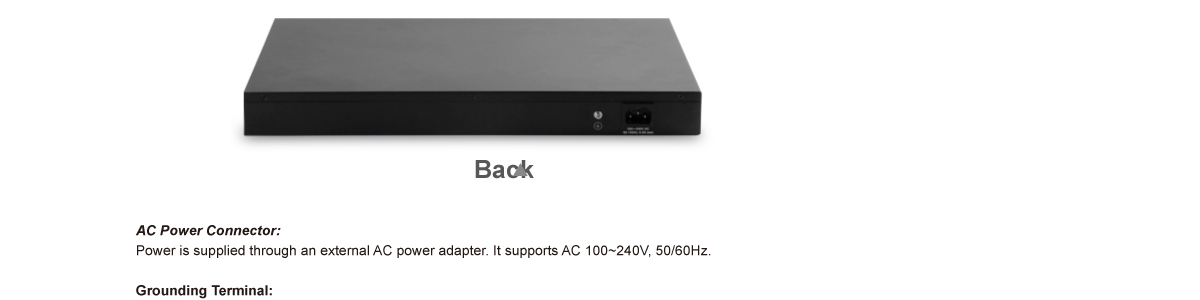

power |
ac 100v~240v 50/60hz 0.5a (internal power supply) |
|
