| model |
fr-s1024d-a |
|
| chipset |
ip1725lf |
|
|
standards |
ieee802.3 10base-t, ieee802.3u 100base-tx |
|
|
network media (cable) |
10base-t: utp category 3, 4, 5 cable (maximum 100m) 100base-tx: utp category 5, 5e cable (maximum 100m) |
|
|
number of ports |
24 x 10/100mbps auto-negotiation ports |
|
|

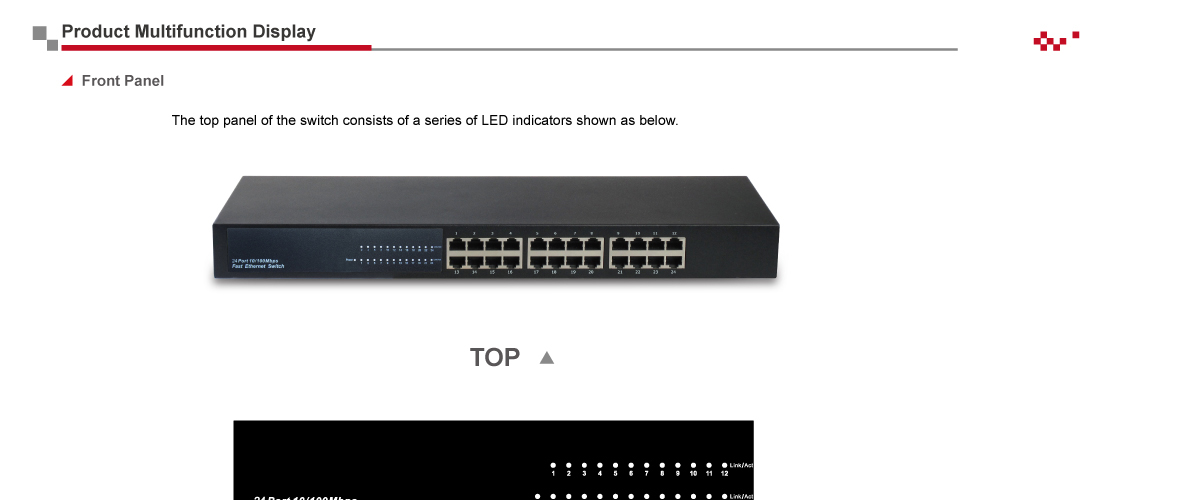

led indicators |
10/100m |
link/act |
|
other |
power |
|
|
transfer method |
store-and-forward |
|
|
switching capacity |
4.8g |
|
|
mac address learning |
8k |
|
|
frame filtering and forward rate |
10mbps: 14880pps, 100mbps: 148800pps |
|
|
power supply/consume |
input: 100-240v～50-60hz 0.6a consume: 6 w（max） |
|
|
environment |
operating temperature: 0℃~40℃ storage temperature: -40℃~70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing |
|
all rj45 ports support the auto-mdi/mdix function. every port can works as uplink port or common port. the switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience. it is the best choice for increasing your speed.
