| model |
fr-s1016gd-e |
|
| chipset |
rtl8376+rtl8218 |
|
|
standards |
ieee 802.3, ieee 802.3u, ieee802.3x, ieee802.3z, eee802.3ad |
|
|
network media (cable) |
four-pair category 5 cables. |
|
|
number of ports |
16 x 10/100/1000mbps auto-negotiation ports |
|
|

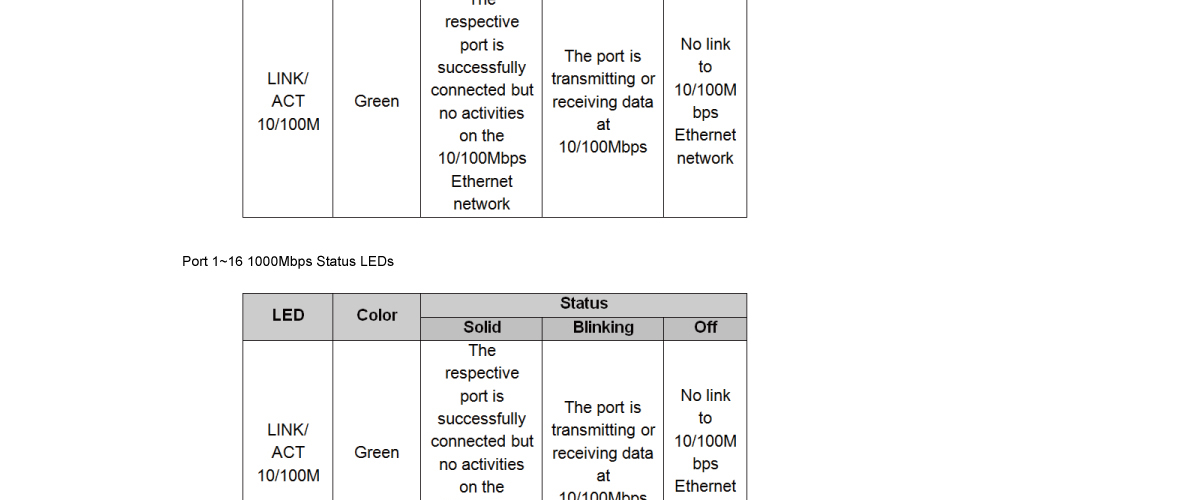

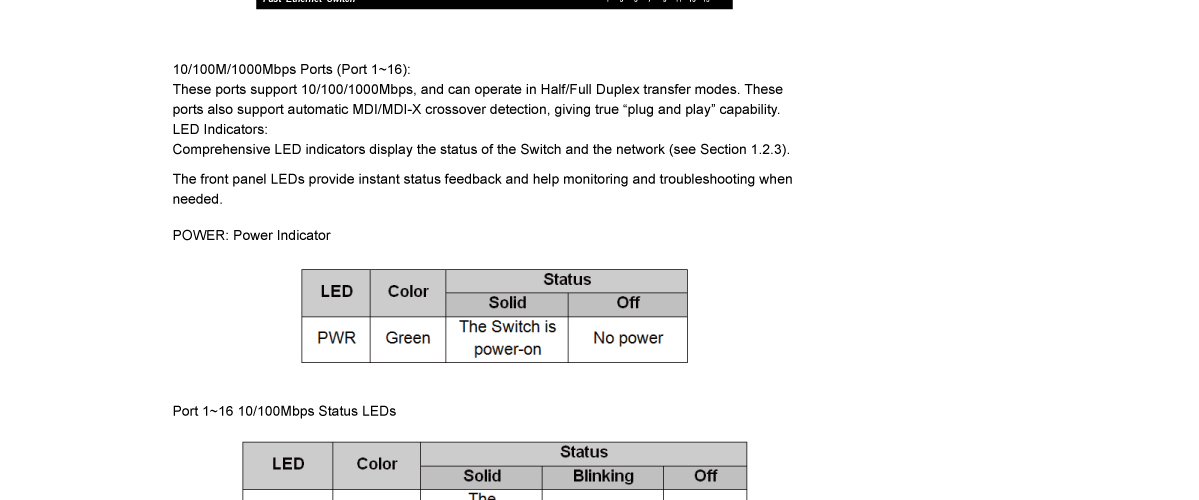

led indicators |
10/100/1000m |
link/act/speed |
|
other |
green |
|
|
transfer method |
store-and-forward |
|
|
switching capacity |
32g |
|
|
mac address learning |
automatically learning, automatically update 8k table |
|
|
frame filtering and forward rate |
10mbps: 14880pps, 100mbps: 148800pps 1000mbps: 1488000pps |
|
|
dimensions (w × d × h) |
440*140*44 mm |
|
|
environment |
operating temperature: 0℃ - 40℃ storage temperature: -10℃ - 70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~90% non-condensing |
|
|

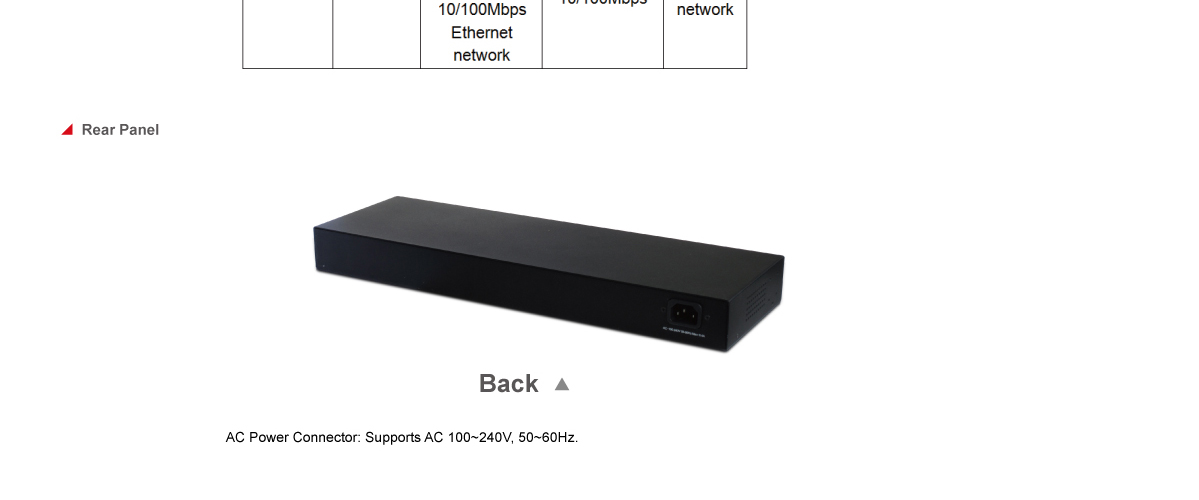

power supply |
ac 100v~240v 50/60hz (internal power supply) |
|
|
power consumption
|
max8(watts)
|
|
