model name |

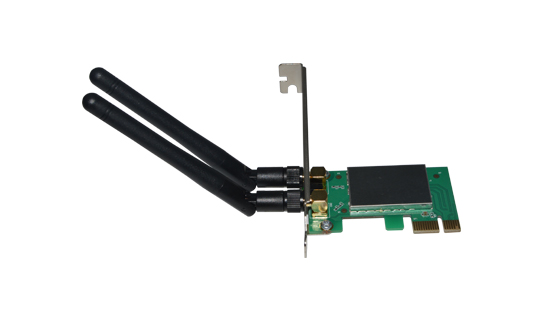

fr-wl140ne-d |
|
chipset |
rtl8192ee-cg |
|
standards and protocols |
ieee 802.11n,ieee 802.11g,ieee 802.11b |
|
operating frequency |
2.4ghz |
|
signal rate |
up to 300mbps |
|
modulation |
ieee 802.11b:cck，qpsk，bpsk ieee 11n:qpsk，bpsk，16-qam，64-qam |
|
transmit power |
≦20dbm |
|
indicators |
2.4g wifi |
|
interfaces |
pci express x1 |
|
antenna |
2* 2dbi omni directional antennas |
|
dimensions ( w x d x h ) |
65x39.4x1.6mm |
|
environment |
operating temperature: 0℃~40℃ storagetemperature:-40℃~70℃ operating humidity:10%~90%rh non-condensing storagehumidity:5%~90%rh non-condensing |
