| model |
fr-wr1048acgu-d/fr-wr1048acg-c |
| chipset |
rtl8197dn+rtl8367rb+rtl8192er+rtl8812ar |
|
standards |
ieee802.11ac,ieee 802.11a, ieee 802.11b, ieee 802.11g, ieee 802.11n, ieee 802.3, ieee 802.3u,ieee802.3z, |
|

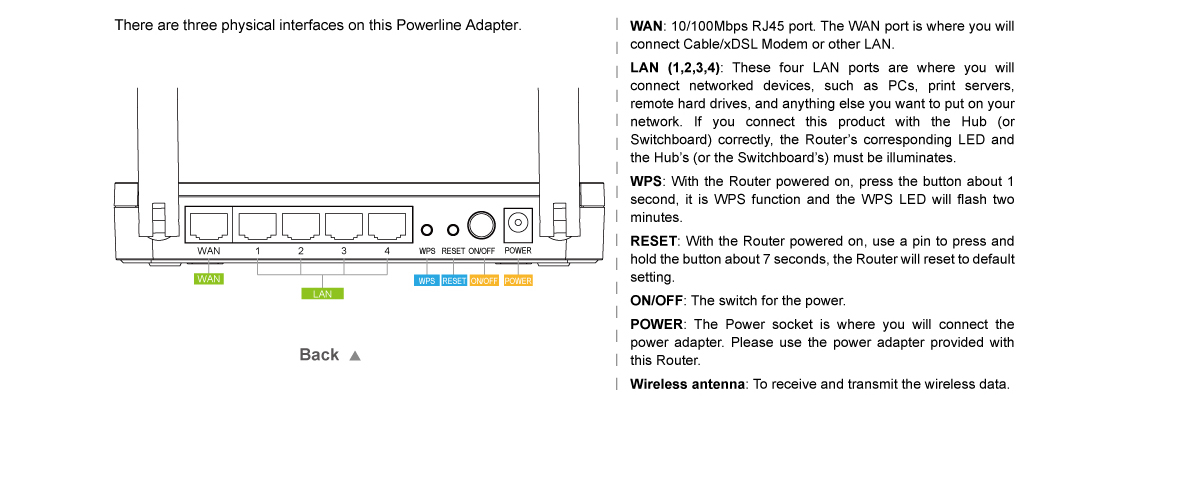

interface |
lan: 4 x 10/100/1000m rj45 ports(auto mdi/mdix) |
|
wan: 1 x 10/100/1000m rj45 port(auto mdi/mdix) |
|
|
usb host: 1 x usb 2.0 port(fr-wr1048acgu-d support) |
|
|
radio data rate |
5ghz: up to 867mbps(11ac) 2.4ghz: up to 300mbps(11n) |
|
frequency range |
|
|
rf power |
20dbm(max) |
|
antennas |
2 x 2.4g/5g dual-band 5dbi non-removable omnidirectional antennas |
|

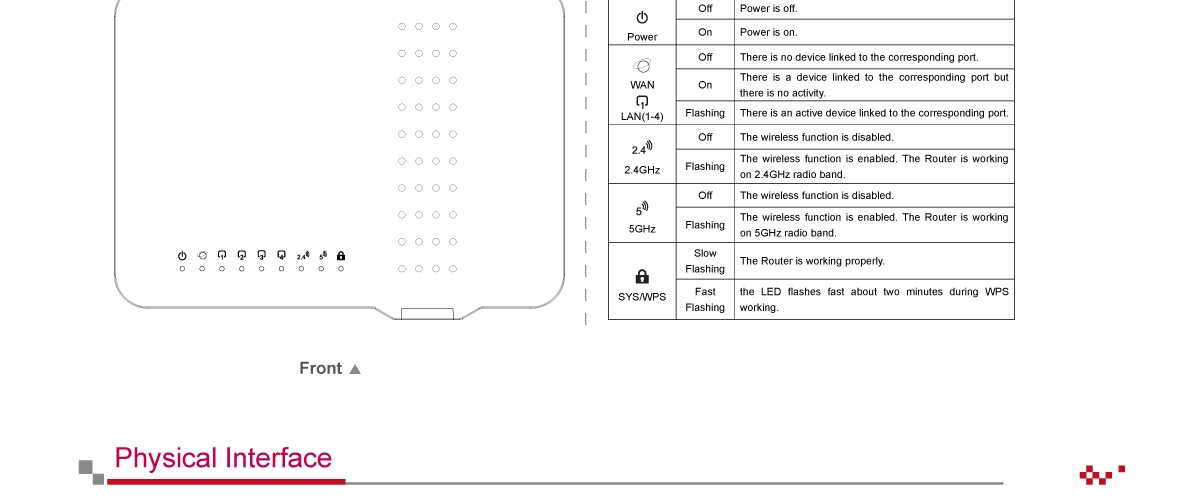

leds |
power, wps/system, wan, lan(4,3,2,1), wlan1(2.4g), wlan2(5g), all the led color is green . |
|
power adapter |
12v,1 a |
|
dimensions(wxdxh) |
159 x 127 x 26mm |
|
environment |
operating temperature: 0℃~40℃ storage temperature: -40℃~70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~95% non-condensing
|
fr-wr1048acgu-d/fr-wr1048acg-c using 2.4g and 5g dual-band concurrent technology, support latest 802.11ac standards, backward compatibility ieee 802.11 a/b/g/n,2.4ghz and 5ghz wireless transmission rate up to 1167 mbps when concurrent operation, integrated router, wi-fi access point, 4 ports gigabit switch and fire wall functions in one. provide convenient and comprehensive network management functions, supports url filtering, mac address filtering and the qos bandwidth control function, can effectively allocate the client's download rate. supports wireless data encryption, and can guarantee the security of data transmission in wireless network.
fullriver, as a professional manufacturer of wifi router, poe switch, and wireless access point, offers oem services of high quality 2.4 and 5g dual-band 1.2gbps wireless gigabit router from it's 15000 square meter factory.
fullriver is the networking product supplier for more than 12 years, now release the 1200m wireless router, becomes your best choice for the 1200m wireless router manufacturer.
with the advanced production equipment and strong r&d team, fullriver will be your best 1200m wireless router supplier. be your best supplier.
