| model |
fr-wa1024np-c |
||
|
chipset |
rtl8196e+rtl8192er |
||
|
rom |
ram |
4mb |
ddr1 32mb |
|
standards |
ieee 802.11n, ieee 802.11g, ieee 802.11b, ieee 802.3, ieee 802.3u, ieee802.3af |
||
|
interface type |
wan：1 x 10/100 mbps rj45 (support poe power supply) |
||
|
lan：1 x 10/100 rj45 port(auto mdi/mdix) |
|||
|
rj11(rj45) ：1 x 10/100/1000m rj45 |
|||
|
1*1 reset button |
|||
|
modulation technology |
dbpsk, dqpsk, cck, ofdm, 16-qam, 64-qam |
||
|
radio data rate |
11n: up to 300mbps 11g: 54/48/36/24/18/12/9/6m 11b: 11/5.5/2/1m |
||
|
sensitivity @per
|
11n_mcs7_20m: -70dbm@10% per 11n_mcs7_40m: -66dbm@10% per 54m: -72dbm@10% per 11m: -86dbm@8% per |
||
|
frequency range |
11a: 6/9/12/18/24/36/48/54mbps 11b: 1/2/5.5/11mbps 11g: 6/9/12/18/24/36/48/54mbps 11n: up to150mbps 11ac:up to 433mbps(80mhz ) |
||
|
sensitivity @per |
2.4~2.4835ghz |
||
|
rf power |
18dbm(max) |
||
|
antenna |
2 * 3dbi 2.4g built-in antennas |
||
|
max. consumption |
2w |
||
|
leds |
system |
||
|
dimensions (w x d x h) |
86*86*36mm |
||
|
environment |
operating temperature: 0℃ - 40℃ storage temperature: -40℃~70℃ operating humidity: 10%~90% non-condensing storage humidity: 5%~95% non-condensing |
||

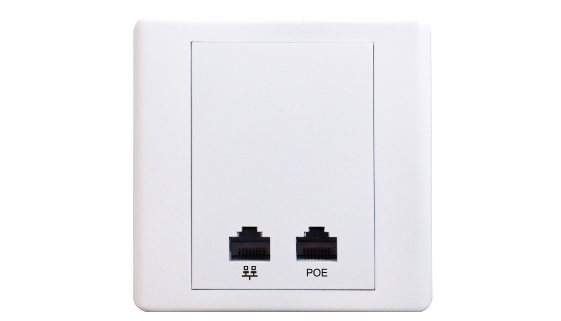

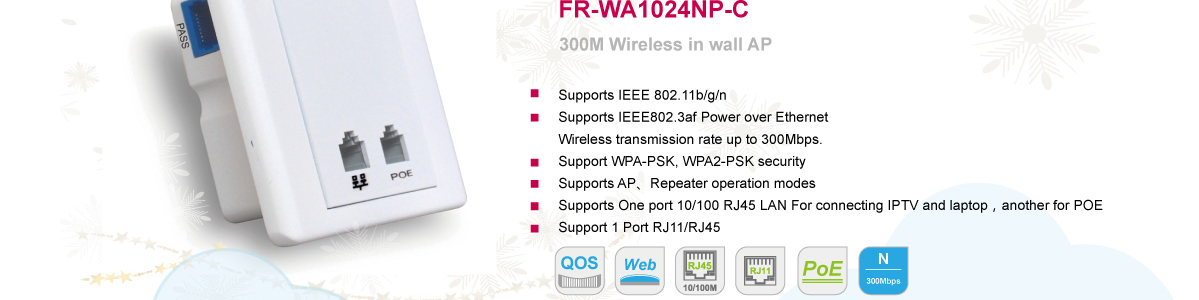

description of 300m wireless in wall ap

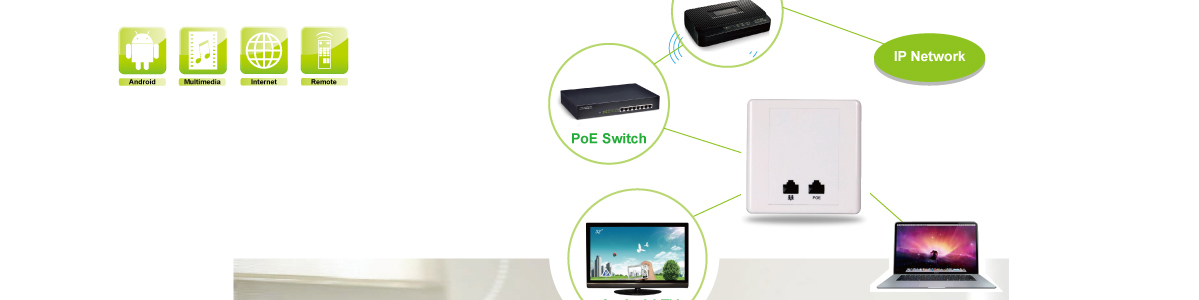

fr-wa1024np-c in wall ap is compatible with ieee802.11b/g/n standard wifi router, using mimo, ofdm technology, to provide a stable wireless transmission rate up to 300mbps, downward compatible with ieee802.11b/g wireless standards and equipment. product positioning in the hotel, application type residential collection, not only can provide a safe and stable high-speed wireless network for the user, and according to the application environment of indoor diversification, support ethernet environment, the user can choose the wired internet. in addition, 802.3af ethernet standards, the product (poe) power supply mode, no external power supply, installation of the product more simple, flexible, and improve the traditional network layout. fr-wa1024np-c wireless access point has the functions of rj11 phone interface, easily realize telephone network, wired network, wireless network, triple play, it is an ideal product for the hotel, ktv and network layout.
features of 300m wireless in wall ap

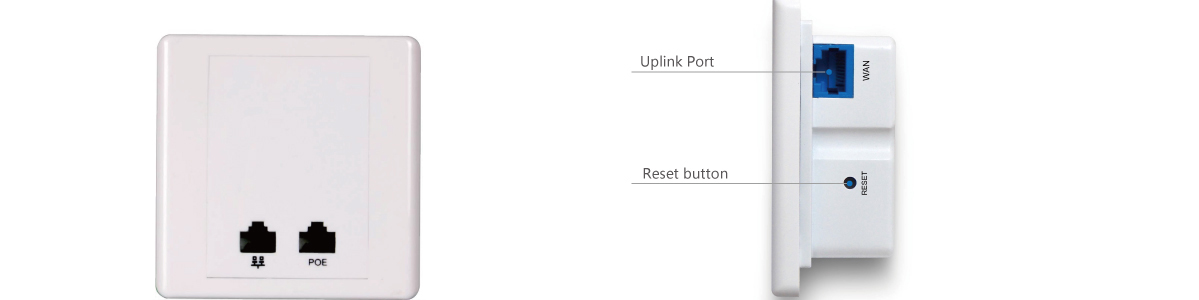

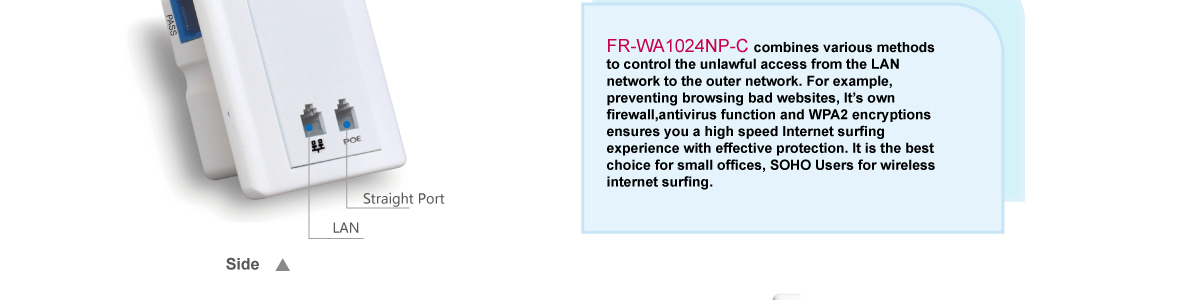

fr-wa1024np-c provides 1 x 10/100mbps rj45 wan interface, support 802.3af poe standard power supply and 1 x 10/100mbps rj45 lan interface, 1 x 10/100/1000m rj45/rj11 port, high speed data rate - up to 300mbps, 64/128-bit wep encryption and wpa-psk, wpa2-psk security, qos bandwidth control function, can effectively allocate the client's download rate and web user interface (remote configuration). besides it adopts installed into the wall design, the panel of the box is mounted directly on the wall , convenient, beautiful.
